Objects and Java Seminar
Applets, AWT Graphics, and Java 2D
Lecture Handout

Agenda


Applets


The Applet Tag

<applet
    CODE="Flasher.class"
    CODEBASE="classes"
    WIDTH=100 HEIGHT=75
>
</applet>
<applet
    CODE="Flasher.class"
    CODEBASE="classes"
    WIDTH=50 HEIGHT=125
>
<param name="delayBetwPaints" value="2000">
<param name="color1" value="0x9966ff">
<param name="color2" value="0xff9933">
</applet>

Applet Methods


How Flasher Works


AWT Graphics

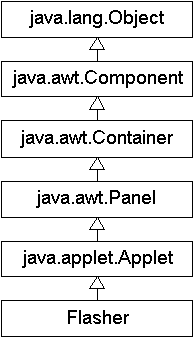

The Flasher Applet

  1 // In file appletsawt/examples/ex1/Flasher.java
  2 import java.applet.*;
  3 import java.awt.*;
  4
  5 public class Flasher extends Applet {
  6
  7     // delayBetweenPaints, color1, and
  8     // color2 have default values assigned
  9     // here, which can be overriden by parameters
 10     // specified in the HTML applet tag.
 11     private int delayBetweenPaints = 1000;
 12     private Color color1 = Color.green;
 13     private Color color2 = Color.blue;
 14
 15     private Runner runner;
 16     boolean showColor1;
 17
 18     public void init() {
 19
 20         String delayStr = getParameter("delayBetwPaints");
 21
 22         if (delayStr != null) {
 23             try {
 24
 25                 delayBetweenPaints =
 26                     Integer.parseInt(delayStr);
 27             }
 28             catch (NumberFormatException e) {
 29             }
 30         }
 31
 32         String color1Str = getParameter("color1");
 33
 34         if (color1Str != null) {
 35
 36             try {
 37
 38                 color1 = Color.decode(color1Str);
 39             }
 40             catch (NumberFormatException e) {
 41             }
 42         }
 43
 44         String color2Str = getParameter("color2");
 45
 46         if (color2Str != null) {
 47
 48             try {
 49
 50                 color2 = Color.decode(color2Str);
 51             }
 52             catch (NumberFormatException e) {
 53             }
 54         }
 55     }
 56
 57     private class Runner extends Thread {
 58
 59         private boolean stopRequested;
 60
 61         void requestStop() {
 62             stopRequested = true;
 63         }
 64
 65         public void run() {
 66
 67             for (;;) {
 68
 69                 if (stopRequested) {
 70                     return;
 71                 }
 72
 73                 showColor1 = !showColor1;
 74
 75                 repaint();
 76
 77                 try {
 78                     sleep(delayBetweenPaints);
 79                 }
 80                 catch (InterruptedException e) {
 81                 }
 82             }
 83         }
 84     }
 85
 86     public synchronized void start() {
 87
 88         if (runner == null) {
 89
 90             runner = new Runner();
 91             runner.start();
 92         }
 93     }
 94
 95     public synchronized void stop() {
 96
 97         if (runner != null) {
 98
 99             runner.requestStop();
100             runner = null;
101         }
102     }
103
104     public void paint(Graphics g) {
105
106         Dimension dim = getSize();
107
108         if (showColor1) {
109             g.setColor(color1);
110         }
111         else {
112             g.setColor(color2);
113         }
114
115         g.fillRect(0, 0, dim.width, dim.height);
116     }
117 }

Graphics Methods

void paint(Graphics g) {
    //...
}
g.drawRect(xStart, yStart, width, height);
g.fillRect(xStart, yStart, width, height);
g.drawRoundRect(xStart, yStart, width, height, arcWidth, arcHeight);
g.fillRoundRect(xStart, yStart, width, height, arcWidth, arcHeight);
g.draw3DRect(xStart, yStart, width, height, raised);
g.fill3DRect(xStart, yStart, width, height, raised);
 1 // In file appletsawt/examples/ex2/DrawRectDemo.java
 2 import java.applet.*;
 3 import java.awt.*;
 4
 5 public class DrawRectDemo extends Applet {
 6
 7     private Color bgColor = Color.darkGray;
 8     private Color fgColor = Color.yellow;
 9
10     // border is the number of pixels beyond the edge
11     // of the panel that the shape begins
12     private static final int BORDER = 5;
13
14     public void init() {
15
16         String fgColorStr = getParameter("fgColor");
17
18         if (fgColorStr != null) {
19
20             try {
21
22                 fgColor = Color.decode(fgColorStr);
23             }
24             catch (NumberFormatException e) {
25             }
26         }
27
28         String bgColorStr = getParameter("bgColor");
29
30         if (bgColorStr != null) {
31
32             try {
33
34                 bgColor = Color.decode(bgColorStr);
35             }
36             catch (NumberFormatException e) {
37             }
38         }
39
40         setBackground(bgColor);
41     }
42
43     public void paint(Graphics g) {
44
45         Dimension dim = getSize();
46
47         int shapeWidth = dim.width - (2 * BORDER);
48         int shapeHeight = dim.height - (2 * BORDER);
49
50         int xShapeStart = BORDER;
51         int yShapeStart = BORDER;
52
53         g.setColor(fgColor);
54         g.drawRect(xShapeStart, yShapeStart, shapeWidth, shapeHeight);
55     }
56 }

More Graphics Methods

g.drawOval(xStart, yStart, width, height);
g.fillOval(xStart, yStart, width, height);
g.drawArc(xStart, yStart, width, height, startAngle, arcAngle);
g.fillArc(xStart, yStart, width, height, startAngle, arcAngle);
g.drawPolygon(xPoints, yPoints, N_POINTS);
g.fillPolygon(xPoints, yPoints, N_POINTS);
g.drawLine(xStart, yStart, xEnd, yEnd);
g.drawImage(theImage, 0, 0, this);


 1 // In file appletsawt/examples/ex2/DrawImageDemo.java
 2 import java.applet.*;
 3 import java.awt.*;
 4 import java.net.URL;
 5
 6 public class DrawImageDemo extends Applet {
 7
 8     private Image theImage;
 9
10     public void init() {
11
12         URL url = getDocumentBase();
13         theImage = getImage(url, "images/book.jpg");
14     }
15
16     public void paint(Graphics g) {
17
18         g.drawImage(theImage, 0, 0, this);
19     }
20 }

Fonts and Text

 1 // In file appletsawt/examples/ex2/DrawTextDemo.java
 2 import java.applet.*;
 3 import java.awt.*;
 4
 5 public class DrawTextDemo extends Applet {
 6
 7     private Color bgColor = Color.darkGray;
 8     private Color fgColor = Color.yellow;
 9     private String labelString = "Howdy!";
10
11     // border is the number of pixels beyond the edge
12     // of the panel that the shape begins
13     private static final int BORDER = 5;
14
15     public void init() {
16
17         String fgColorStr = getParameter("fgColor");
18
19         if (fgColorStr != null) {
20
21             try {
22
23                 fgColor = Color.decode(fgColorStr);
24             }
25             catch (NumberFormatException e) {
26             }
27         }
28
29         String bgColorStr = getParameter("bgColor");
30
31         if (bgColorStr != null) {
32
33             try {
34
35                 bgColor = Color.decode(bgColorStr);
36             }
37             catch (NumberFormatException e) {
38             }
39         }
40
41         String labelString = getParameter("label");
42
43         if (labelString != null) {
44
45             this.labelString = labelString;
46         }
47
48         setBackground(bgColor);
49     }
50
51     public void paint(Graphics g) {
52
53         Dimension dim = getSize();
54
55         Font labelFont = new Font("Helvetica", Font.BOLD, 14);
56         FontMetrics fm = getFontMetrics(labelFont);
57
58         int labelStringWidth = fm.stringWidth(labelString);
59         int labelStringHeight = fm.getAscent();
60
61         int xStart = (dim.width - labelStringWidth) / 2;
62         int yStart =
63             ((dim.height - labelStringHeight) / 2) + labelStringHeight;
64         g.setColor(fgColor);
65         g.setFont(labelFont);
66         g.drawString(labelString, xStart, yStart);
67     }
68 }

XOR Mode

chocolate becomes scoop
scoop becomes chocolate
All Other Colors become Their Complement
 1 // In file appletsawt/examples/ex2/XORModeDemo.java
 2 import java.applet.*;
 3 import java.awt.*;
 4 import java.awt.event.*;
 5
 6 public class XORModeDemo extends Applet {
 7
 8     private Color strawberry = new Color(0xcc, 0, 0x66);
 9     private Color chocolate = new Color(0x66, 0x33, 0);
10     private Color vanilla = new Color(0xff, 0xff, 0x99);
11     private Color scoop = new Color(0x33, 0x99, 0xcc);
12
13     // border is the number of pixels beyond the edge
14     // of the panel that the shape begins
15     private static final int BORDER = 10;
16
17     public void init() {
18
19         setBackground(chocolate);
20
21         addMouseListener(
22
23             new MouseAdapter() {
24
25                 public void mousePressed(MouseEvent e) {
26
27                     Graphics g = getGraphics();
28
29                     g.setColor(chocolate);
30                     g.setXORMode(scoop);
31
32                     Dimension dim = getSize();
33                     int diameter = dim.height - (2 * BORDER);
34
35                     int xStart = (dim.width / 2) - (diameter / 2);
36                     int yStart = BORDER;
37
38                     g.fillOval(xStart, yStart, diameter, diameter);
39
40                     g.setPaintMode();
41                 }
42             }
43         );
44     }
45
46     public void paint(Graphics g) {
47
48         Dimension dim = getSize();
49
50         int width = dim.width / 3;
51         int height = dim.height;
52
53         g.setColor(strawberry);
54         g.fillRect(0, 0, width, height);
55
56         g.setColor(vanilla);
57         g.fillRect(dim.width - width, 0, width, height);
58     }
59 }

Animation

  1 // In file appletsawt/examples/ex3/FlickeryEclipse.java
  2 import java.applet.*;
  3 import java.awt.*;
  4
  5 public class FlickeryEclipse extends Applet {
  6
  7     private Color bgColor = Color.white;
  8     private Color sunColor = Color.yellow;
  9     private Color moonColor = Color.black;
 10
 11     private int delayBetweenPaints = 50;
 12     private Runner runner;
 13
 14     private boolean moonGoesRightToLeft = true;
 15     private int moonStep = 1;
 16
 17     // xMoon is initialized by paint(), the first time
 18     // paint() gets called. paint() knows to do this
 19     // because xMoonInitialized is false, and then sets
 20     // xMoonInitialized to true.
 21     private boolean xMoonInitialized = false;
 22     private int xMoon;
 23
 24     // border is the number of pixels beyond the edge
 25     // of the panel that the sun circle begins
 26     private static final int BORDER = 3;
 27
 28     public void init() {
 29
 30         String delayStr = getParameter("delayBetwPaints");
 31
 32         if (delayStr != null) {
 33             try {
 34
 35                 delayBetweenPaints = Integer.parseInt(delayStr);
 36             }
 37             catch (NumberFormatException e) {
 38             }
 39         }
 40
 41         String bgColorStr = getParameter("bgColor");
 42
 43         if (bgColorStr != null) {
 44
 45             try {
 46
 47                 bgColor = Color.decode(bgColorStr);
 48             }
 49             catch (NumberFormatException e) {
 50             }
 51         }
 52
 53         String sunColorStr = getParameter("sunColor");
 54
 55         if (sunColorStr != null) {
 56
 57             try {
 58
 59                 sunColor = Color.decode(sunColorStr);
 60             }
 61             catch (NumberFormatException e) {
 62             }
 63         }
 64
 65         String moonColorStr = getParameter("moonColor");
 66
 67         if (moonColorStr != null) {
 68
 69             try {
 70
 71                 moonColor = Color.decode(moonColorStr);
 72             }
 73             catch (NumberFormatException e) {
 74             }
 75         }
 76
 77         String moonDirStr = getParameter("moonDir");
 78
 79         if (moonColorStr != null) {
 80
 81             if (moonDirStr.equalsIgnoreCase("leftToRight")) {
 82
 83                 moonGoesRightToLeft = false;
 84             }
 85         }
 86
 87         String moonStepStr = getParameter("moonStep");
 88
 89         if (moonStepStr != null) {
 90             try {
 91
 92                 moonStep = Integer.parseInt(moonStepStr);
 93             }
 94             catch (NumberFormatException e) {
 95             }
 96         }
 97
 98         setBackground(bgColor);
 99     }
100
101     private class Runner extends Thread {
102
103         private boolean stopRequested;
104
105         void requestStop() {
106             stopRequested = true;
107         }
108
109         public void run() {
110
111             for (;;) {
112
113                 if (stopRequested) {
114                     return;
115                 }
116
117                 if (xMoonInitialized) {
118                     if (moonGoesRightToLeft) {
119                         xMoon -= moonStep;
120                     }
121                     else {
122                         xMoon += moonStep;
123                     }
124                 }
125
126                 repaint();
127
128                 try {
129                     sleep(delayBetweenPaints);
130                 }
131                 catch (InterruptedException e) {
132                 }
133             }
134         }
135     }
136
137     public synchronized void start() {
138
139         if (runner == null) {
140
141             runner = new Runner();
142             runner.start();
143         }
144     }
145
146     public synchronized void stop() {
147
148         if (runner != null) {
149
150             runner.requestStop();
151             runner = null;
152         }
153     }
154
155     public void paint(Graphics g) {
156
157         Dimension dim = getSize();
158
159         int diameter = dim.height;
160         if (dim.width < dim.height) {
161
162             diameter = dim.width;
163         }
164
165         diameter -= 2 * BORDER;
166         int radius = diameter / 2;
167
168         // Find sun start location
169         int xCenter = dim.width / 2;
170         int yCenter = dim.height / 2;
171
172         int xSunStart = xCenter - radius;
173         int ySunStart = yCenter - radius;
174
175         g.setColor(sunColor);
176         g.fillOval(xSunStart, ySunStart, diameter, diameter);
177
178         if (!xMoonInitialized || (xMoon <= -diameter)
179             || (xMoon > dim.width)) {
180
181             if (moonGoesRightToLeft) {
182                 xMoon = dim.width - 1;
183             }
184             else {
185                 xMoon = 1 - diameter;
186             }
187             xMoonInitialized = true;
188         }
189
190         g.setColor(moonColor);
191         g.fillOval(xMoon, ySunStart, diameter, diameter);
192     }
193 }

Double Buffering

  1 // In file appletsawt/example/ex4/Eclipse.java
  2 import java.applet.*;
  3 import java.awt.*;
  4
  5 public class Eclipse extends Applet {
  6
  7     private Color bgColor = Color.white;
  8     private Color sunColor = Color.yellow;
  9     private Color moonColor = Color.black;
 10
 11     private int delayBetweenPaints = 50;
 12     private Runner runner;
 13
 14     private boolean moonGoesRightToLeft = true;
 15     private int moonStep = 1;
 16
 17     // xMoon is initialized by paint(), the first time
 18     // paint() gets called. paint() knows to do this
 19     // because xMoonInitialized is false, and then sets
 20     // xMoonInitialized to true.
 21     private boolean xMoonInitialized = false;
 22     private int xMoon;
 23
 24     // border is the number of pixels beyond the edge
 25     // of the panel that the sun circle begins
 26     private static final int BORDER = 3;
 27
 28     public void init() {
 29
 30         String delayStr = getParameter("delayBetwPaints");
 31
 32         if (delayStr != null) {
 33             try {
 34
 35                 delayBetweenPaints = Integer.parseInt(delayStr);
 36             }
 37             catch (NumberFormatException e) {
 38             }
 39         }
 40
 41         String bgColorStr = getParameter("bgColor");
 42
 43         if (bgColorStr != null) {
 44
 45             try {
 46
 47                 bgColor = Color.decode(bgColorStr);
 48             }
 49             catch (NumberFormatException e) {
 50             }
 51         }
 52
 53         String sunColorStr = getParameter("sunColor");
 54
 55         if (sunColorStr != null) {
 56
 57             try {
 58
 59                 sunColor = Color.decode(sunColorStr);
 60             }
 61             catch (NumberFormatException e) {
 62             }
 63         }
 64
 65         String moonColorStr = getParameter("moonColor");
 66
 67         if (moonColorStr != null) {
 68
 69             try {
 70
 71                 moonColor = Color.decode(moonColorStr);
 72             }
 73             catch (NumberFormatException e) {
 74             }
 75         }
 76
 77         String moonDirStr = getParameter("moonDir");
 78
 79         if (moonColorStr != null) {
 80
 81             if (moonDirStr.equalsIgnoreCase("leftToRight")) {
 82
 83                 moonGoesRightToLeft = false;
 84             }
 85         }
 86
 87         String moonStepStr = getParameter("moonStep");
 88
 89         if (moonStepStr != null) {
 90             try {
 91
 92                 moonStep = Integer.parseInt(moonStepStr);
 93             }
 94             catch (NumberFormatException e) {
 95             }
 96         }
 97     }
 98
 99     private class Runner extends Thread {
100
101         private boolean stopRequested;
102
103         void requestStop() {
104             stopRequested = true;
105         }
106
107         public void run() {
108
109             for (;;) {
110
111                 if (stopRequested) {
112                     return;
113                 }
114
115                 if (xMoonInitialized) {
116                     if (moonGoesRightToLeft) {
117                         xMoon -= moonStep;
118                     }
119                     else {
120                         xMoon += moonStep;
121                     }
122                 }
123
124                 repaint();
125
126                 try {
127                     sleep(delayBetweenPaints);
128                 }
129                 catch (InterruptedException e) {
130                 }
131             }
132         }
133     }
134
135     public synchronized void start() {
136
137         if (runner == null) {
138
139             runner = new Runner();
140             runner.start();
141         }
142     }
143
144     public synchronized void stop() {
145
146         if (runner != null) {
147
148             runner.requestStop();
149             runner = null;
150         }
151     }
152
153     public void update(Graphics g) {
154
155         paint(g);
156     }
157
158     public void paint(Graphics g) {
159
160         Dimension dim = getSize();
161
162         // Double buffer to reduce flicker
163         Image offscreenImage = createImage(dim.width, dim.height);
164         Graphics og = offscreenImage.getGraphics();
165
166         og.setColor(bgColor);
167         og.fillRect(0, 0, dim.width, dim.height);
168
169         int diameter = dim.height;
170         if (dim.width < dim.height) {
171
172             diameter = dim.width;
173         }
174
175         diameter -= 2 * BORDER;
176         int radius = diameter / 2;
177
178         // Find sun start location
179         int xCenter = dim.width / 2;
180         int yCenter = dim.height / 2;
181
182         int xSunStart = xCenter - radius;
183         int ySunStart = yCenter - radius;
184
185         og.setColor(sunColor);
186         og.fillOval(xSunStart, ySunStart, diameter, diameter);
187
188         if (!xMoonInitialized || (xMoon <= -diameter)
189             || (xMoon > dim.width)) {
190
191             if (moonGoesRightToLeft) {
192                 xMoon = dim.width - 1;
193             }
194             else {
195                 xMoon = 1 - diameter;
196             }
197             xMoonInitialized = true;
198         }
199
200         og.setColor(moonColor);
201         og.fillOval(xMoon, ySunStart, diameter, diameter);
202
203         g.drawImage(offscreenImage, 0, 0, this);
204     }
205 }

Java 2D API


Rendering Context


Rendering


Graphics2D Pipeline


A 2D Eclipse

  1 // In file appletsawt/example/ex5/Eclipse.java
  2 import java.applet.*;
  3 import java.awt.*;
  4 import java.awt.geom.*;
  5
  6 public class Eclipse extends Applet {
  7
  8     private Color bgColor = Color.white;
  9     private Color sunColor = Color.yellow;
 10     private Color moonColor = Color.black;
 11
 12     private Image offscreen;
 13
 14     private int delayBetweenPaints = 50;
 15     private Runner runner;
 16
 17     private boolean moonGoesRightToLeft = true;
 18     private int moonStep = 1;
 19
 20     // xMoon is initialized by paint(), the first time
 21     // paint() gets called. paint() knows to do this
 22     // because xMoonInitialized is false, and then sets
 23     // xMoonInitialized to true.
 24     private boolean xMoonInitialized = false;
 25     private int xMoon;
 26
 27     // border is the number of pixels beyond the edge
 28     // of the panel that the sun circle begins
 29     private static final int BORDER = 3;
 30
 31     public void init() {
 32
 33         String delayStr = getParameter("delayBetwPaints");
 34
 35         if (delayStr != null) {
 36             try {
 37
 38                 delayBetweenPaints = Integer.parseInt(delayStr);
 39             }
 40             catch (NumberFormatException e) {
 41             }
 42         }
 43
 44         String bgColorStr = getParameter("bgColor");
 45
 46         if (bgColorStr != null) {
 47
 48             try {
 49
 50                 bgColor = Color.decode(bgColorStr);
 51             }
 52             catch (NumberFormatException e) {
 53             }
 54         }
 55
 56         String sunColorStr = getParameter("sunColor");
 57
 58         if (sunColorStr != null) {
 59
 60             try {
 61
 62                 sunColor = Color.decode(sunColorStr);
 63             }
 64             catch (NumberFormatException e) {
 65             }
 66         }
 67
 68         String moonColorStr = getParameter("moonColor");
 69
 70         if (moonColorStr != null) {
 71
 72             try {
 73
 74                 moonColor = Color.decode(moonColorStr);
 75             }
 76             catch (NumberFormatException e) {
 77             }
 78         }
 79
 80         String moonDirStr = getParameter("moonDir");
 81
 82         if (moonColorStr != null) {
 83
 84             if (moonDirStr.equalsIgnoreCase("leftToRight")) {
 85
 86                 moonGoesRightToLeft = false;
 87             }
 88         }
 89
 90         String moonStepStr = getParameter("moonStep");
 91
 92         if (moonStepStr != null) {
 93             try {
 94
 95                 moonStep = Integer.parseInt(moonStepStr);
 96             }
 97             catch (NumberFormatException e) {
 98             }
 99         }
100     }
101
102     private class Runner extends Thread {
103
104         private boolean stopRequested;
105
106         void requestStop() {
107             stopRequested = true;
108         }
109
110         public void run() {
111
112             for (;;) {
113
114                 if (stopRequested) {
115                     return;
116                 }
117
118                 if (xMoonInitialized) {
119                     if (moonGoesRightToLeft) {
120                         xMoon -= moonStep;
121                     }
122                     else {
123                         xMoon += moonStep;
124                     }
125                 }
126
127                 repaint();
128
129                 try {
130                     sleep(delayBetweenPaints);
131                 }
132                 catch (InterruptedException e) {
133                 }
134             }
135         }
136     }
137
138     public synchronized void start() {
139
140         if (runner == null) {
141
142             runner = new Runner();
143             runner.start();
144         }
145     }
146
147     public synchronized void stop() {
148
149         if (runner != null) {
150
151             runner.requestStop();
152             runner = null;
153         }
154     }
155
156     public void update(Graphics g) {
157
158         paint(g);
159     }
160
161     private void checkOffscreenImage() {
162
163         Dimension d = getSize();
164         if ((offscreen == null)
165            || (offscreen.getWidth(null) != d.width)
166            || (offscreen.getHeight(null) != d.height)) {
167
168             offscreen = createImage(d.width, d.height);
169         }
170     }
171
172     public void paint(Graphics g) {
173
174         Dimension dim = getSize();
175
176         // Double buffer to reduce flicker
177         checkOffscreenImage();
178         Graphics2D og2 = (Graphics2D) offscreen.getGraphics();
179
180         og2.setColor(bgColor);
181         og2.fillRect(0, 0, dim.width, dim.height);
182
183         int diameter = dim.height;
184         if (dim.width < dim.height) {
185
186             diameter = dim.width;
187         }
188
189         diameter -= 2 * BORDER;
190         int radius = diameter / 2;
191
192         // Find sun start location
193         int xCenter = dim.width / 2;
194         int yCenter = dim.height / 2;
195
196         int xSunStart = xCenter - radius;
197         int ySunStart = yCenter - radius;
198
199         // Define gradient points
200         Point2D p1 = new Point2D.Float(xCenter, yCenter);
201         Point2D p2 = new Point2D.Float(xSunStart + (radius / 3),
202             ySunStart + (radius / 3));
203
204         // Sun should have 4 horizontal gradient cycles
205         GradientPaint gp = new GradientPaint(p1, sunColor, p2, bgColor,
206             true);
207
208         // Create the shape for the sun
209         Ellipse2D sun = new Ellipse2D.Float(xSunStart, ySunStart,
210             diameter, diameter);
211
212         og2.setPaint(gp);
213         og2.fill(sun);
214
215         // Turn antialiasing on AFTER drawing the sun
216         og2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
217             RenderingHints.VALUE_ANTIALIAS_ON);
218
219         if (!xMoonInitialized || (xMoon <= -diameter)
220             || (xMoon > dim.width)) {
221
222             if (moonGoesRightToLeft) {
223                 xMoon = dim.width - 1;
224             }
225             else {
226                 xMoon = 1 - diameter;
227             }
228             xMoonInitialized = true;
229         }
230
231         // Create the shape for the moon
232         Ellipse2D moon = new Ellipse2D.Float(xMoon, ySunStart,
233             diameter, diameter);
234
235         Composite compo = AlphaComposite.getInstance(
236             AlphaComposite.SRC_OVER, 0.5f);
237
238         og2.setComposite(compo);
239         og2.setPaint(moonColor);
240         og2.fill(moon);
241
242         g.drawImage(offscreen, 0, 0, this);
243     }
244 }

A Sharper Image

  1 // In file appletsawt/example/ex6/Eclipse.java
  2 import java.applet.*;
  3 import java.awt.*;
  4 import java.awt.geom.*;
  5 import java.awt.image.*;
  6 import java.io.*;
  7 import com.sun.image.codec.jpeg.*;
  8
  9 public class Eclipse extends Applet {
 10
 11     private Color bgColor = Color.white;
 12     private Color sunColor = Color.yellow;
 13     private Color moonColor = Color.black;
 14
 15     private Image offscreen;
 16     private BufferedImage cover;
 17
 18     private float[] sharpKernel = {
 19        0.0f, -1.0f, 0.0f,
 20        -1.0f, 5.0f, -1.0f,
 21        0.0f, -1.0f, 0.0f
 22     };
 23
 24     private ConvolveOp sharpOp = new ConvolveOp(
 25         new Kernel(3, 3, sharpKernel),
 26         ConvolveOp.EDGE_NO_OP, null);
 27
 28     private int delayBetweenPaints = 50;
 29     private Runner runner;
 30
 31     private boolean moonGoesRightToLeft = true;
 32     private int moonStep = 1;
 33
 34     // xMoon is initialized by paint(), the first time
 35     // paint() gets called. paint() knows to do this
 36     // because xMoonInitialized is false, and then sets
 37     // xMoonInitialized to true.
 38     private boolean xMoonInitialized = false;
 39     private int xMoon;
 40
 41     // border is the number of pixels beyond the edge
 42     // of the panel that the sun circle begins
 43     private static final int BORDER = 3;
 44
 45     public void init() {
 46
 47         String delayStr = getParameter("delayBetwPaints");
 48
 49         if (delayStr != null) {
 50             try {
 51
 52                 delayBetweenPaints = Integer.parseInt(delayStr);
 53             }
 54             catch (NumberFormatException e) {
 55             }
 56         }
 57
 58         String bgColorStr = getParameter("bgColor");
 59
 60         if (bgColorStr != null) {
 61
 62             try {
 63
 64                 bgColor = Color.decode(bgColorStr);
 65             }
 66             catch (NumberFormatException e) {
 67             }
 68         }
 69
 70         String sunColorStr = getParameter("sunColor");
 71
 72         if (sunColorStr != null) {
 73
 74             try {
 75
 76                 sunColor = Color.decode(sunColorStr);
 77             }
 78             catch (NumberFormatException e) {
 79             }
 80         }
 81
 82         String moonColorStr = getParameter("moonColor");
 83
 84         if (moonColorStr != null) {
 85
 86             try {
 87
 88                 moonColor = Color.decode(moonColorStr);
 89             }
 90             catch (NumberFormatException e) {
 91             }
 92         }
 93
 94         String moonDirStr = getParameter("moonDir");
 95
 96         if (moonColorStr != null) {
 97
 98             if (moonDirStr.equalsIgnoreCase("leftToRight")) {
 99
100                 moonGoesRightToLeft = false;
101             }
102         }
103
104         String moonStepStr = getParameter("moonStep");
105
106         if (moonStepStr != null) {
107             try {
108
109                 moonStep = Integer.parseInt(moonStepStr);
110             }
111             catch (NumberFormatException e) {
112             }
113         }
114
115         try {
116
117             FileInputStream in =
118                 new FileInputStream("images/book.jpg");
119
120             try {
121                 JPEGImageDecoder decoder =
122                     JPEGCodec.createJPEGDecoder(in);
123                 cover = decoder.decodeAsBufferedImage();
124             }
125             finally {
126                 in.close();
127             }
128         }
129         catch (IOException e) {
130         }
131     }
132
133     private class Runner extends Thread {
134
135         private boolean stopRequested;
136
137         void requestStop() {
138             stopRequested = true;
139         }
140
141         public void run() {
142
143             for (;;) {
144
145                 if (stopRequested) {
146                     return;
147                 }
148
149                 if (xMoonInitialized) {
150                     if (moonGoesRightToLeft) {
151                         xMoon -= moonStep;
152                     }
153                     else {
154                         xMoon += moonStep;
155                     }
156                 }
157
158                 repaint();
159
160                 try {
161                     sleep(delayBetweenPaints);
162                 }
163                 catch (InterruptedException e) {
164                 }
165             }
166         }
167     }
168
169     public synchronized void start() {
170
171         if (runner == null) {
172
173             runner = new Runner();
174             runner.start();
175         }
176     }
177
178     public synchronized void stop() {
179
180         if (runner != null) {
181
182             runner.requestStop();
183             runner = null;
184         }
185     }
186
187     public void update(Graphics g) {
188
189         paint(g);
190     }
191
192     private void checkOffscreenImage() {
193
194         Dimension d = getSize();
195         if ((offscreen == null)
196            || (offscreen.getWidth(null) != d.width)
197            || (offscreen.getHeight(null) != d.height)) {
198
199             offscreen = createImage(d.width, d.height);
200         }
201     }
202
203     public void paint(Graphics g) {
204
205         Dimension dim = getSize();
206
207         // Double buffer to reduce flicker
208         checkOffscreenImage();
209         Graphics2D og2 = (Graphics2D) offscreen.getGraphics();
210
211         og2.setColor(bgColor);
212         og2.fillRect(0, 0, dim.width, dim.height);
213
214         int diameter = dim.height;
215         if (dim.width < dim.height) {
216
217             diameter = dim.width;
218         }
219
220         diameter -= 2 * BORDER;
221         int radius = diameter / 2;
222
223         // Find sun start location
224         int xCenter = dim.width / 2;
225         int yCenter = dim.height / 2;
226
227         int xSunStart = xCenter - radius;
228         int ySunStart = yCenter - radius;
229
230         // Define gradient points
231         Point2D p1 = new Point2D.Float(xCenter, yCenter);
232         Point2D p2 = new Point2D.Float(xSunStart + (radius / 3),
233             ySunStart + (radius / 3));
234
235         // Sun should have 4 horizontal gradient cycles
236         GradientPaint gp = new GradientPaint(p1, sunColor, p2, bgColor,
237             true);
238
239         // Create the shape for the sun
240         Ellipse2D sun = new Ellipse2D.Float(xSunStart, ySunStart,
241             diameter, diameter);
242
243         og2.setPaint(gp);
244         og2.fill(sun);
245
246         // Turn antialiasing on AFTER drawing the sun
247         og2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
248             RenderingHints.VALUE_ANTIALIAS_ON);
249
250         if (!xMoonInitialized || (xMoon <= -diameter)
251             || (xMoon > dim.width)) {
252
253             if (xMoonInitialized) {
254                 // Sharpen the book cover
255                 cover = sharpOp.filter(cover, null);
256             }
257
258             if (moonGoesRightToLeft) {
259                 xMoon = dim.width - 1;
260             }
261             else {
262                 xMoon = 1 - diameter;
263             }
264             xMoonInitialized = true;
265         }
266
267         // Create the shape for the moon
268         Ellipse2D moon = new Ellipse2D.Float(xMoon, ySunStart,
269             diameter, diameter);
270
271         Composite compo = AlphaComposite.getInstance(
272             AlphaComposite.SRC_OVER, 0.5f);
273
274         og2.setComposite(compo);
275         og2.setPaint(moonColor);
276         og2.fill(moon);
277
278         int coverWidth = cover.getWidth(null);
279         int coverHeight = cover.getHeight(null);
280
281         int xCover = xMoon + radius - (coverWidth / 2);
282         int yCover = yCenter - (coverHeight / 2);
283
284         compo = AlphaComposite.getInstance(
285             AlphaComposite.SRC_OVER, 1.0f);
286
287         og2.setComposite(compo);
288         og2.clip(moon);
289         og2.drawImage(cover, xCover, yCover, null);
290
291         g.drawImage(offscreen, 0, 0, this);
292     }
293 }

A Blurred Image

  1 // In file appletsawt/example/ex7/Eclipse.java
  2 import java.applet.*;
  3 import java.awt.*;
  4 import java.awt.geom.*;
  5 import java.awt.image.*;
  6 import java.io.*;
  7 import com.sun.image.codec.jpeg.*;
  8
  9 public class Eclipse extends Applet {
 10
 11     private Color bgColor = Color.white;
 12     private Color sunColor = Color.yellow;
 13     private Color moonColor = Color.black;
 14
 15     private Image offscreen;
 16     private BufferedImage cover;
 17
 18     private static final float ninth = 1.0f / 9.0f;
 19     private float[] blurKernel = {
 20        ninth, ninth, ninth,
 21        ninth, ninth, ninth,
 22        ninth, ninth, ninth
 23     };
 24
 25     private ConvolveOp blurOp = new ConvolveOp(
 26         new Kernel(3, 3, blurKernel),
 27         ConvolveOp.EDGE_NO_OP, null);
 28
 29     private int delayBetweenPaints = 50;
 30     private Runner runner;
 31
 32     private boolean moonGoesRightToLeft = true;
 33     private int moonStep = 1;
 34
 35     // xMoon is initialized by paint(), the first time
 36     // paint() gets called. paint() knows to do this
 37     // because xMoonInitialized is false, and then sets
 38     // xMoonInitialized to true.
 39     private boolean xMoonInitialized = false;
 40     private int xMoon;
 41
 42     // border is the number of pixels beyond the edge
 43     // of the panel that the sun circle begins
 44     private static final int BORDER = 3;
 45
 46     public void init() {
 47
 48         String delayStr = getParameter("delayBetwPaints");
 49
 50         if (delayStr != null) {
 51             try {
 52
 53                 delayBetweenPaints = Integer.parseInt(delayStr);
 54             }
 55             catch (NumberFormatException e) {
 56             }
 57         }
 58
 59         String bgColorStr = getParameter("bgColor");
 60
 61         if (bgColorStr != null) {
 62
 63             try {
 64
 65                 bgColor = Color.decode(bgColorStr);
 66             }
 67             catch (NumberFormatException e) {
 68             }
 69         }
 70
 71         String sunColorStr = getParameter("sunColor");
 72
 73         if (sunColorStr != null) {
 74
 75             try {
 76
 77                 sunColor = Color.decode(sunColorStr);
 78             }
 79             catch (NumberFormatException e) {
 80             }
 81         }
 82
 83         String moonColorStr = getParameter("moonColor");
 84
 85         if (moonColorStr != null) {
 86
 87             try {
 88
 89                 moonColor = Color.decode(moonColorStr);
 90             }
 91             catch (NumberFormatException e) {
 92             }
 93         }
 94
 95         String moonDirStr = getParameter("moonDir");
 96
 97         if (moonColorStr != null) {
 98
 99             if (moonDirStr.equalsIgnoreCase("leftToRight")) {
100
101                 moonGoesRightToLeft = false;
102             }
103         }
104
105         String moonStepStr = getParameter("moonStep");
106
107         if (moonStepStr != null) {
108             try {
109
110                 moonStep = Integer.parseInt(moonStepStr);
111             }
112             catch (NumberFormatException e) {
113             }
114         }
115
116         try {
117
118             FileInputStream in =
119                 new FileInputStream("images/book.jpg");
120
121             try {
122                 JPEGImageDecoder decoder =
123                     JPEGCodec.createJPEGDecoder(in);
124                 cover = decoder.decodeAsBufferedImage();
125             }
126             finally {
127                 in.close();
128             }
129         }
130         catch (IOException e) {
131         }
132     }
133
134     private class Runner extends Thread {
135
136         private boolean stopRequested;
137
138         void requestStop() {
139             stopRequested = true;
140         }
141
142         public void run() {
143
144             for (;;) {
145
146                 if (stopRequested) {
147                     return;
148                 }
149
150                 if (xMoonInitialized) {
151                     if (moonGoesRightToLeft) {
152                         xMoon -= moonStep;
153                     }
154                     else {
155                         xMoon += moonStep;
156                     }
157                 }
158
159                 repaint();
160
161                 try {
162                     sleep(delayBetweenPaints);
163                 }
164                 catch (InterruptedException e) {
165                 }
166             }
167         }
168     }
169
170     public synchronized void start() {
171
172         if (runner == null) {
173
174             runner = new Runner();
175             runner.start();
176         }
177     }
178
179     public synchronized void stop() {
180
181         if (runner != null) {
182
183             runner.requestStop();
184             runner = null;
185         }
186     }
187
188     public void update(Graphics g) {
189
190         paint(g);
191     }
192
193     private void checkOffscreenImage() {
194
195         Dimension d = getSize();
196         if ((offscreen == null)
197            || (offscreen.getWidth(null) != d.width)
198            || (offscreen.getHeight(null) != d.height)) {
199
200             offscreen = createImage(d.width, d.height);
201         }
202     }
203
204     public void paint(Graphics g) {
205
206         Dimension dim = getSize();
207
208         // Double buffer to reduce flicker
209         checkOffscreenImage();
210         Graphics2D og2 = (Graphics2D) offscreen.getGraphics();
211
212         og2.setColor(bgColor);
213         og2.fillRect(0, 0, dim.width, dim.height);
214
215         int diameter = dim.height;
216         if (dim.width < dim.height) {
217
218             diameter = dim.width;
219         }
220
221         diameter -= 2 * BORDER;
222         int radius = diameter / 2;
223
224         // Find sun start location
225         int xCenter = dim.width / 2;
226         int yCenter = dim.height / 2;
227
228         int xSunStart = xCenter - radius;
229         int ySunStart = yCenter - radius;
230
231         // Define gradient points
232         Point2D p1 = new Point2D.Float(xCenter, yCenter);
233         Point2D p2 = new Point2D.Float(xSunStart + (radius / 3),
234             ySunStart + (radius / 3));
235
236         // Sun should have 4 horizontal gradient cycles
237         GradientPaint gp = new GradientPaint(p1, sunColor, p2, bgColor,
238             true);
239
240         // Create the shape for the sun
241         Ellipse2D sun = new Ellipse2D.Float(xSunStart, ySunStart,
242             diameter, diameter);
243
244         og2.setPaint(gp);
245         og2.fill(sun);
246
247         // Turn antialiasing on AFTER drawing the sun
248         og2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
249             RenderingHints.VALUE_ANTIALIAS_ON);
250
251         if (!xMoonInitialized || (xMoon <= -diameter)
252             || (xMoon > dim.width)) {
253
254             if (xMoonInitialized) {
255                 // Blur the book cover
256                 cover = blurOp.filter(cover, null);
257             }
258
259             if (moonGoesRightToLeft) {
260                 xMoon = dim.width - 1;
261             }
262             else {
263                 xMoon = 1 - diameter;
264             }
265             xMoonInitialized = true;
266         }
267
268         // Create the shape for the moon
269         Ellipse2D moon = new Ellipse2D.Float(xMoon, ySunStart,
270             diameter, diameter);
271
272         Composite compo = AlphaComposite.getInstance(
273             AlphaComposite.SRC_OVER, 0.5f);
274
275         og2.setComposite(compo);
276         og2.setPaint(moonColor);
277         og2.fill(moon);
278
279         int coverWidth = cover.getWidth(null);
280         int coverHeight = cover.getHeight(null);
281
282         int xCover = xMoon + radius - (coverWidth / 2);
283         int yCover = yCenter - (coverHeight / 2);
284
285         compo = AlphaComposite.getInstance(
286             AlphaComposite.SRC_OVER, 1.0f);
287
288         og2.setComposite(compo);
289         og2.clip(moon);
290         og2.drawImage(cover, xCover, yCover, null);
291
292         g.drawImage(offscreen, 0, 0, this);
293     }
294 }

Exercises

Problem 1.

Go to the AppletsAWT/examples/ex1 directory of the sample code. Try out the appletviewer with this command: appletviewer Test.html Once you've had your fill of watching this Flasher applet, close the appletviewer and edit Test.html. Change the values of parameters delayBetwPaints, color1, and color2 to reflect your own artistic sentiments, and try running appletviewer again.

Problem 2.

Create a new applet called ShapeSketcher that once per second draws the outline of a random shape on the applet panel, placing the shape on a random position within the bounds of the applet. The shape should be either a Rectangle2D or a Ellipse2D, and have width and height values that are chosen randomly. Make sure the entire shape fits withing the bounds of the applet.

Problem 3.

Change ShapeSketcher so that it looks for a parameter called delayBetwPaints in the HTML tag and if it finds it, sets the sleep time between paints to the value specified (in milliseconds) in the parameter. (If it doesn't find a delayBetwPaints parameter, it continues to use its default sleep time between paints of one second.)

Problem 4.

Change ShapeSketcher once again, this time adding a third shape to the applet's repertoire. Using GeneralPath, draw a closed triangle. You can just create a triangle of one size and use it every time the applet decides to draw a triangle rather than a rectangle or ellipse. So unlike the rectangle or ellipse, the triangles won't show up in random sizes. But like rectangles and ellipses, you should place triangles in a random position on the applet panel each time you draw one.

Problem 5.

Copy ShapeSketcher.java to a new directory and rename it ShapePainter. Each time you draw a shape, do one more step. Select a random color and fill the shape with that color.

Problem 6.

Use double buffering to eliminate any flicker in ShapePainter.

Problem 7.

Change ShapePainter so that instead of drawing and painting its randomly generated shapes onto the applet panel directly, it renders the shapes onto an Area which has the same size as the applet panel, then draws the entire Area all at once on the applet panel. Render the shapes onto the Area by invoking add() on the Area. Once you have that working, add one more random choice to the applet. Each time you render a shape on the Area, pick one of four methods to invoke on the Area object at random: add(), subtract(), exlusiveOr(), or intersect(). This will cause each newly added shape to "mix" with existing shapes in interesting ways.

Problem 8.

Change ShapePainter so that instead of painting the shapes with solid colors, it paints them with a gradient that alternates between two random colors.

Problem 9.

Find a JPEG or GIF file somewhere on the web and figure out what it's URL is. Create yet another applet, this time called ImagePainter, that displays this image on the applet panel. Your applet should retrieve the image across the network each time. (In other words, don't save the image file locally, just type in the full URL of the image in your source file for ImagePainter.)

Problem 10.

Change ImagePainter so that once every 10 seconds, it rotates the image 90 degrees clockwise. You'll have to use an AffineTransformOp to do the rotating. The filter() method will return a new image that represents the result of the rotation, so every five seconds you'll have to replace the image that's being displayed on the applet panel.

Problem 11.

Change ImagePainter one last time. This time have it perform a dimming operation on the image each time it gets rotated. To perform the dimming operation, you'll need to use a RescaleOp. Old images never die, they just spin and fade away.

Problem 12.

If you still haven't had enough, create a new applet named MandelbrotSet that calculates and renders the Mandelbrot Set in radiant colors on the applet's panel.

Sponsored Links

Copyright © 1996-2014 Artima, Inc. All Rights Reserved. - Privacy Policy - Terms of Use - Advertise with Us
