Formal Techniques
Reflections on the Quality of Open Source Software
by Rix Groenboom
November 18, 2003
Proponents of Open Source software have long claimed that their code is of higher quality than the equivalent commercial software. Opponents of Open Source argue just the opposite: that Open Source software is inherently unreliable. Until now, there has been little independent, objective data available to support either view.



On Feb 11, 2003 Reasoning published a study comparing the Linux TCP/IP stack to commercially developed TCP/IP stacks. This comparison showed that an active, mature Open Source project may have fewer defects than similar commercial projects (the study is available for download at URL


The report generated numerous requests for more information about Open Source development and how it compares to commercial development. In response to those inquiries, Reasoning inspected an Open Source project in an earlier phase of the development lifecycle. The selection was based on the following criteria, chosen because they represent the most appropriate comparison with the company’s existing knowledgebase of code inspections:


1.      An active Open Source community, which shows that there are stakeholders in the development effort

2.      Code in development, which allows us to see the state of code earlier in the lifecycle

3.      Stable code base (i.e. 2.x or 3.x release), to avoid the vagaries of a “starter project”

4.      Usage within the software industry, to ensure that there is pressure from the customer community


Based on these criteria, the Apache Web Server was a natural selection. This is the most widely used Open Source web server available, and is essential to many commercial web based applications running today. The code that was inspected is included in Apache http server 2.1, dated January 31, 2003. This specific version represents active development of approximately two months.


Automated Software Inspection

Software inspection – the process of examining source code to identify defects – is a standard practice in development organizations and is widely recognized as the best way to find defects. Inspection is hardware-independent, does not require a “runable” application or a suite of test cases, and does not affect code size or execution speed. The majority of code inspections are performed manually. Theoretically, the greatest number of defects can be uncovered when a developer reads through the code line by line. However, this process is slow, painstaking, and fraught with inconsistency – and does not scale to handle the growing number of multimillion-line applications.


As a code base grows, the cost of a complete manual inspection becomes prohibitive, and the volume of code is intimidating to developers. As a result, manual inspections are only performed on subsets of the source code.


Inspection tools are available, but are capable of performing only a portion of the inspection process, requiring significant further manual review. These tools generate a large volume of defect warning messages, but many of them are false positives – the inspection tool “thinks” that it has found a defect, but a deeper manual analysis of the context shows that it has not. This false positive problem is so severe that the rate frequently exceeds 50 false positives for each true positive. In other words, only two percent of warning messages represent actual defects.


Automated software inspection (ASI) services provide many of the benefits of a manual code review in significantly less time, and at a dramatically lower cost, than manual inspection or internal use of inspection tools. It is typically conducted as an outsourced service, which prevents the diversion of in-house development resources from current development projects.

Automated software inspection typically identifies defects that cause application crashes and data corruption, and provides actionable reports for the development team. With the expertise gained by running and analyzing the output of automated tools on a daily basis, ASI is able to mitigate the problem of false positives.


The results of automated code inspection are reports that:


·        Make defect removal fast and simple by identifying the location and describing the circumstances under which the defects will occur

·        Identify the parts of the code with the greatest risk, enabling the development organization to focus QA and testing resources where they are most needed

·        Compare code quality with a benchmark


Apache Inspection Results

The inspected Apache code base consisted of 58,944 lines of source code (not including white spaces or comment lines). In total, we found 31 code defects. A key reliability indicator is the defect density, which is defined as the number of defects per thousand lines of source code. The defect density of the Apache code inspected comes to 0.53 per thousand lines of source code (KLSC). In comparing this defect density to the commercial applications we have inspected, we find that the Apache code has a defect density very similar to the average defect density we have found within commercial applications.


Based on our experience, Apache 2.1 is starting at a similar defect level as commercial code. This is not unexpected. Development teams working on Open Source are likely to have the same experience level as commercial projects. This is particularly true with projects that are widely used within industry; since they will often include input from those same commercial developers.


Another component of our analysis is the breakdown of defects by defect class and insights that can be drawn from this information. We divide the defects found into five specific categories:


·        Memory leaks:                                          0

·        NULL pointer dereference:                    29

·        Bad Deallocations:                                 0

·        Out of Bounds Array Access:                0

·        Unintialized Variable:                             2


Defects found in the Apache code are consistent with new development, as seen by the relatively high percentage of Null Pointer Dereferences. In a different application, we would expect to see some memory leaks and out of bounds array accesses. However, given the nature of Apache, these two categories have likely received far more attention. In particular, software that has not gone through as rigorous a security “cleaning” is much more likely to have out of bounds array access (since buffer overflows are a subset of these). The difference in defect distribution, though interesting, is just a natural “tradeoff” based on the application functionality.


Unlike our findings in the Linux TCP/IP inspection, Apache 2.1 does not show an appreciable difference in code quality (as measured by defect density) when compared to commercial development.

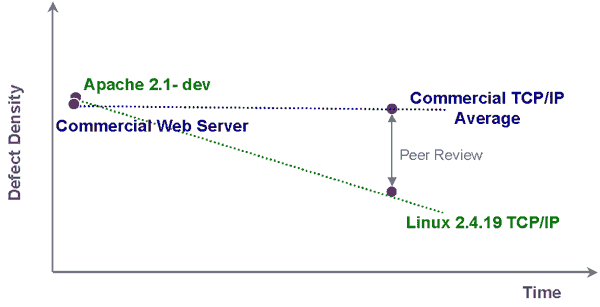

Given that this code has a similar defect density as commercial code, what can be learned about the differences between Open Source and commercial development?  From the previous Open Source inspection, Reasoning determined that the Linux TCP/IP stack showed a lower number of defects than the majority of the commercial TCP/IP stacks inspected. This was a comparison of very mature software and, on average, showed Open Source to be superior. However, it only looked at the result of many years of development. Because the Apache code is relatively early in its development lifecycle, this current inspection allows an approximation of the initial defect density achieved by Open Source. Though more data will be needed to prove out a conclusion, when the Open Source and commercial data points are plotted, we can make an approximation of the change in defect density over time.


Given the limited data, Reasoning sees Open Source as being faster, on average, than commercial efforts at removing defects from software. This is not as expected, since commercial software companies often invest considerably in testing tools and time in order to meet reliability requirements demanded by their customers.


It should be noted that Open Source can end up with fewer defects. Because the new evidence shows that both development environments are likely to start with a similar number of defects, the core of the difference must be after development starts. In that time period, the main difference is the number of developers actually looking at the code. Commercial software companies are more likely to have sophisticated tools; however, they are unlikely to have achieved the same level of peer review that Open Source code can achieve, which is critical in finding defects.


This is certainly not a new concept. Software engineering leaders such as Michael Fagan and Capers Jones have pointed out the advantages of software inspection. The advantage of the inspection process – to identify and remove defects – is likely to be heightened in Open Source projects, since the reviewers are often quite independent from the contributors. This provides the autonomous nature that Fagan’s review guidelines are aimed at. While it may be difficult within a company, it is a natural consequence of Open Source.


It has been clearly demonstrated that incorporating inspection into the software development process results in significant reductions in defect rates. Capers Jones data shows a six-fold acceleration in defect removal when inspection is employed in conjunction with testing.


The greatest challenge for development organizations is that the amount of effort needed to manually review code and manage the process to guarantee review independence often leads to abandonment of the effort. Or worse, inspections become a virtual “rubber stamp.”



As earlier stated, Reasoning has chosen Open Source projects to best compare against commercial development. Clearly the data presented here cannot be extrapolated to all Open Source efforts, or to all commercial efforts. Other Open Source projects may or may not show the same improvement in defect densities as they mature. Key drivers in this are:


·        The number of active developers reviewing the project

·        Maturity level since the last major release (i.e. later dot releases)

·        Strong customer use


However, when selecting an Open Source (or any third party) product, we recommend a thorough analysis of its reliability.


This comparison relies on the assumption that the Apache 2.1 project will attain the same defect densities found in the mature Linux TCP stack. Though this is a reasonable assumption, it will require future study to verify.
