Huffman coding is an entropy based encoding algorithm. Take an arbitrary language, and you will find that certain characters are used way more often than others. Huffman coding allows you to leverage that; it allows you to use less bits for characters that occur more often, and more bits for the exceptions.
Having Huffman encoding for Preon has been on my wish list for a while, but since all I do is Scala these days, I just couldn't resist trying to do it in Scala. And it works:
class DecodingException(depth: Int) extends Exception
class HuffmanCodec(in: Map[Char,Double]) {
private val tree = {
val list = { for ((char, weight) <- in) yield CharacterNode(char, weight) } toList
def createTree(list: List[Node]): Node = list match {
case top :: Nil => top
case first :: second :: Nil => ChoiceNode(first.push(true), second.push(false))
case multiple =>
val first :: second :: others = multiple.sortBy(_.weight)
createTree(ChoiceNode(first.push(true), second.push(false)) :: others)
}
createTree(list)
}
private val index = {
tree.all.collect{
case node: CharacterNode => (node.char, node.code)
}.toMap
}
def decode(in: Seq[Boolean], length: Int, builder: StringBuilder = new StringBuilder): (String, Seq[Boolean]) = {
if (length > 0) {
val (char, remaining) = tree.decode(in)
builder += char
decode(remaining, length - 1, builder)
} else {
(builder.result, in)
}
}
def encode(in: String): Seq[Boolean] = {
in.flatMap(index(_))
}
private abstract sealed class Node {
def decode(in: Seq[Boolean]): (Char, Seq[Boolean])
def weight: Double
def push(code: Boolean): Node
def all: List[Node]
}
private case class CharacterNode(char: Char, weight: Double, code: List[Boolean] = Nil) extends Node {
def decode(in: Seq[Boolean]): (Char, Seq[Boolean]) = (char, in)
def push(code: Boolean) = CharacterNode(char, weight, code :: this.code)
val all = List(this)
override def toString = "CharacterNode(%s)".format(char)
}
private case class ChoiceNode(left: Node, right: Node, code: List[Boolean] = Nil) extends Node {
val weight = left.weight + right.weight
def push(code: Boolean) = ChoiceNode(left.push(code), right.push(code), code :: this.code)
def decode(in: Seq[Boolean]): (Char, Seq[Boolean]) = in.headOption match {
case Some(true) => left.decode(in.tail)
case Some(false) => right.decode(in.tail)
case None => throw new DecodingException(code.length)
}
val all = this :: (left.all ++ right.all)
override def toString = "ChoiceNode(%s, %s)".format(left, right)
}
}
With these definitions, creating a new instance of a Codec is as easy this:
scala> val codec = new HuffmanCodec(Map('a' -> 2.0, 'b' -> 3.0, 'c' -> 0.5, 'd' -> 0.7))
codec: HuffmanCodec = HuffmanCodec@52c54b3b
In the above case, the only characters we can encode are characters 'a' to 'd'. They are passed in as a map, with the character as the key and the
weight as the value. (The weight says something about the relative presence of that particular character compared to all of the other characters. You could normalize everything to be fractions on a scale running from 0 to 1 that would all add up to 1, but as long as the numbers correctly reflect relative appearance, it's all good.)

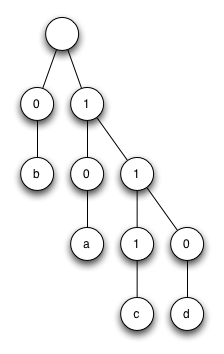

The underlying tree that is getting constructed based on these arguments looks like this:
