Module 5. Designing with Composition and Inheritance

Designing with Patterns Workshop
Designing with Composition and Inheritance

Agenda

Use concrete classes to say "What objects are."
Use composition to enlist the help of other objects.
Use class extension to model permanent IS-A relationships.
Understand the difference between inheritance and composition.

What Objects Are

Guideline: Use concrete classes to say "What objects are."
A concrete class is a blueprint for objects
Because objects represent things, class names should be nouns
The class maps a name to a set of services offered by the methods in the public interface
The set of services defines what it means to be an instance of the named class
Behavior may be described in terms of implementation: A java.util.LinkedList is a "Linked list implementation of the List interface."
A class should "be" one thing -- be about one concept

An `Account` Class

To be an Account means to offer three services: deposit(), withdraw(), and getBalance()

 1 package com.artima.examples.account.ex1;
 2
 3 /**
 4 * Represents a bank account. Money is stored in this account in integral
 5 * units. Clients can use this account to store any kind of value, such as
 6 * money or points, etc. The meaning of the integral units stored in this
 7 * account is a decision of the client that instantiates the account. The
 8 * maximum amount of units that can be stored as the current balance of an
 9 * <code>Account</code> is Long.MAX_VALUE.
10 */
11 public class Account {
12
13     /**
14     * The current balance
15     */
16     private long balance;
17
18     /**
19     * Withdraws exactly the passed amount from the <code>Account</code>.
20     * Subclasses must withdraw at least the passed amount, but may
21     * effectively withdraw more. For example, if a subclass includes a
22     * notion of a withrawal fee, the subclass's implementation of this
23     * method may charge that fee by decrementing it from the account at the
24     * time of withdrawal.
25     *
26     * @param amount amount to withdraw
27     * @return amount withdrawn from the <code>Account</code>
28     * @throws InsufficientFundsException if the <code>Account</code>
29     *     contains insufficient funds for the requested withdrawal
30     * @throws IllegalArgumentException if requested withdrawal amount is
31     *     less than or equal to zero.
32     */
33     public long withdraw(long amount)
34         throws InsufficientFundsException {
35
36         if (amount <= 0) {
37             throw new IllegalArgumentException();
38         }
39
40         if (amount > balance) {
41             throw new InsufficientFundsException(amount - balance);
42         }
43
44         balance -= amount;
45         return amount;
46     }
47
48     /**
49     * Deposits exactly the passed amount into the <code>Account</code>.
50     * Subclasses may effectively deposit more or less than the passed amount
51     * into the <code>Account</code>. For example, if a subclass includes a
52     * notion of funds matching, the subclass implementation of this method
53     * may match some or all of the deposited amount at the time of deposit,
54     * effectively increasing the deposited amount. Or, if a subclass
55     * includes the notion of a deposit fee, the subclass's implementation of
56     * this method may charge that fee by decrementing it from the account at
57     * the time of deposit, effectively reducing the deposited amount.
58     *
59     * @param amount amount to deposit
60     * @throws ArithmeticException if requested deposit would cause the
61     *     balance of this <code>Account</code> to exceed Long.MAX_VALUE.
62     * @throws IllegalArgumentException if requested deposit is less than
63     *     or equal to zero.
64     */
65     public void deposit(long amount) {
66
67         if (amount <= 0) {
68             throw new IllegalArgumentException();
69         }
70
71         long newBal = balance + amount;
72
73         if (newBal < 0) {
74             throw new ArithmeticException();
75         }
76
77         balance = newBal;
78     }
79
80     /**
81     * Gets the current balance of this <code>Account</code>
82     *
83     * @return the current balance
84     */
85     public long getBalance() {
86         return balance;
87     }
88 }
89

 1 package com.artima.examples.account.ex1;
 2
 3 /**
 4 * Exception thrown by <code>Account</code>s to indicate that a requested
 5 * withdrawal has failed because of insufficient funds.
 6 */
 7 public class InsufficientFundsException extends Exception {
 8
 9     /**
10     * Minimum additional balance required for the requested withdrawal to
11     * succeed.
12     */
13     private long shortfall;
14
15     /**
16     * Constructs an <code>InsufficientFundsException</code> with the passed
17     * shortfall and no specified detail message.
18     *
19     * @param shortfall the amount in excess of available funds that caused a
20     *     withdrawal request to fail.
21     * @throws IllegalArgumentException if passed shortfall is less than or
22     *     equal to zero
23     */
24     public InsufficientFundsException(long shortfall) {
25
26         if (shortfall <= 0) {
27             throw new IllegalArgumentException();
28         }
29
30         this.shortfall = shortfall;
31     }
32
33     /**
34     * Constructs an <code>InsufficientFundsException</code> with the passed
35     * detail message and shortfall.
36     *
37     * @param message the detail message
38     * @param shortfall the amount in excess of available funds that caused a
39     *     withdrawal request to fail.
40     * @throws IllegalArgumentException if passed shortfall is less than or
41     *     equal to zero
42     */
43     public InsufficientFundsException(String message, long shortfall) {
44
45         super(message);
46
47         if (shortfall <= 0) {
48             throw new IllegalArgumentException();
49         }
50
51         this.shortfall = shortfall;
52     }
53
54     /**
55     * Returns the shortfall that caused a withrawal request to fail. The
56     * shortfall is the minimum additional balance required for the requested
57     * withdrawal to succeed.
58     *
59     * @returns shortfall the amount in excess of available funds that caused
60     *     a withdrawal request to fail.
61     */
62     public long getShortfall() {
63         return shortfall;
64     }
65 }
66
67

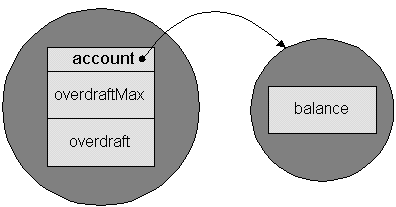

An Account object on the heap:

Discussion

Guideline: Use concrete classes to say "What objects are."

Using Composition

Guideline: Use composition to enlist the help of other objects.
A "front-end" object enlists the help of "back-end" objects
Front-end object holds references to back-end objects in instance variables
Front-end object delegates to back-end objects via explicit method invocations

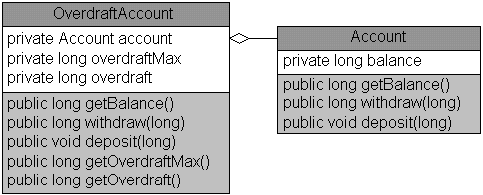

`OverdraftAccount` as Front-End Class

Front-end OverdraftAccount enlists the help of back-end Account

  1 package com.artima.examples.account.ex1;
  2
  3 /**
  4 * Represents a bank account with overdraft protection. Instances of this
  5 * class are instantiated with a specified maximum overdraft. If a client
  6 * attempts to withdraw more than the current account balance, the bank may
  7 * loan the amount in excess of the balance to the client. The overdraft
  8 * maximum passed to an <code>OverdraftAccount</code>'s constructor is the
  9 * maximum amount the bank will lend to the client in this manner. When a
 10 * client makes a deposit, the bank will pay itself back first before
 11 * increasing the account's balance.
 12 *
 13 * <p>
 14 * Money is stored in this account in integral units. Clients can use this
 15 * account to store any kind of value, such as money or points, etc. The
 16 * meaning of the integral units stored in this account is a decision of the
 17 * client that instantiates the account. The maximum amount of units that can
 18 * be stored as the current balance of an <code>Account</code> is
 19 * Long.MAX_VALUE.
 20 */
 21 public class OverdraftAccount {
 22
 23     /**
 24     * Helper back-end <code>Account</code> object
 25     */
 26     private Account account = new Account();
 27
 28     /**
 29     * The maximum amount the bank will loan to the client.
 30     */
 31     private final long overdraftMax;
 32
 33     /**
 34     * The current amount the bank has loaned to the client which has not yet
 35     * been repaid. This value must at all times be greater than or equal to
 36     * zero, and less than or equal to <code>overdraftMax</code>. If this
 37     * value is greater than zero, then the balance of the helper
 38     * <code>Account</code> (referenced from the <code>account</code>
 39     * instance variable) must be exactly zero.
 40     */
 41     private long overdraft;
 42
 43     /**
 44     * Constructs a new <code>OverdraftAccount</code> with the passed
 45     * overdraft maximum.
 46     *
 47     * @param overdraftMax the maximum amount the bank will loan to the
 48     *     client
 49     */
 50     public OverdraftAccount(long overdraftMax) {
 51         this.overdraftMax = overdraftMax;
 52     }
 53
 54     /**
 55     * Returns the current overdraft, the amount the bank has loaned to the
 56     * client that has not yet been repaid.
 57     *
 58     * @return the current overdraft
 59     */
 60     public long getOverdraft() {
 61         return overdraft;
 62     }
 63
 64     /**
 65     * Returns the overdraft maximum, the maximum amount the bank will allow
 66     * the client to owe it. For each instance of
 67     * <code>OverdraftAccount</code>, the overdraft maximum is constant.
 68     *
 69     * @return the overdraft maximum
 70     */
 71     public long getOverdraftMax() {
 72         return overdraftMax;
 73     }
 74
 75     /**
 76     * Gets the current balance of this <code>OverdraftAccount</code>.
 77     *
 78     * @return the current balance
 79     */
 80     public long getBalance() {
 81         return account.getBalance();
 82     }
 83
 84     /**
 85     * Withdraws the passed amount from this <code>OverdraftAccount</code>.
 86     * If the passed amount is less than or equal to the current balance, all
 87     * withdrawn funds will be taken from the balance, and the balance will
 88     * be decremented by the passed amount. If the passed amount exceeds the
 89     * current balance, the bank may loan the client the difference. The bank
 90     * will make the loan only if the difference between the passed amount
 91     * and the balance (the shortfall) is less than or equal to the available
 92     * overdraft. The available overdraft is equal to the current overdraft
 93     * (the amount already loaned to the client and not yet repaid),
 94     * subtracted from the overdraft maximum, which is passed to the
 95     * constructor of any <code>OverdraftAccount</code>.
 96     *
 97     * <p>
 98     * If the passed amount is less than or equal to the current balance, the
 99     * <code>withdraw</code> method decrements the current balance by the
100     * passed amount and returns the passed amount. If the passed amount is
101     * greater than the current balance, but the passed amount minus the
102     * current balance is less than or equal to the available overdraft, the
103     * <code>withdraw</code> method sets the current balance to zero, records
104     * the loan, and returns the requested amount. Otherwise, the passed
105     * amount minus the current balance exceeds the available overdraft, so
106     * the <code>withdraw</code> method throws
107     * <code>InsufficientFundsException</code>.
108     *
109     * Subclasses must withdraw at least the passed amount, but may
110     * effectively withdraw more. For example, if a subclass includes a
111     * notion of a withrawal fee, the subclass's implementation of this
112     * method may charge that fee by decrementing it from the account at the
113     * time of withdrawal.
114     *
115     * @param amount amount to withdraw
116     * @return amount withdrawn from the <code>OverdraftAccount</code>
117     * @throws InsufficientFundsException if the
118     *     <code>OverdraftAccount</code> contains insufficient funds for the
119     *     requested withdrawal
120     * @throws IllegalArgumentException if requested withdrawal amount is
121     *     less than or equal to zero.
122     */
123     public long withdraw(long amount)
124         throws InsufficientFundsException {
125
126         if (amount <= 0) {
127             throw new IllegalArgumentException();
128         }
129
130         long bal = account.getBalance();
131         if (bal >= amount) {
132
133             // Balance has sufficient funds, so just take the
134             // money from the balance.
135             return account.withdraw(amount);
136         }
137
138         long shortfall = amount - bal;
139         long extraAvailable = overdraftMax - overdraft;
140
141         if (shortfall > extraAvailable) {
142             throw new InsufficientFundsException(shortfall
143                 - extraAvailable);
144         }
145         overdraft += shortfall;
146         account.withdraw(amount - shortfall);
147
148         return amount;
149     }
150
151     /**
152     * Deposits the passed amount into the <code>OverdraftAccount</code>. If
153     * the current overdraft is zero, the balance will be increased by the
154     * passed amount. Otherwise, the bank will attempt to pay off the
155     * overdraft first, before increasing the current balance by the amount
156     * remaining after the overdraft is repaid, if any.
157     *
158     * <p>
159     * For example, if the balance is 0, the overdraft is 100, and the
160     * <code>deposit</code> method is invoked with a passed
161     * <code>amount</code> of 50, the bank would use all 50 of those monetary
162     * units to pay down the overdraft. The overdraft would be reduced to 50
163     * and the balance would remain at 0. If subsequently, the client
164     * deposits another 100 units, the bank would use 50 of those units to
165     * pay off the overdraft loan and direct the remaining 50 into the
166     * balance. The new overdraft would be 0 and the new balance would be
167     * 50.
168     *
169     * Subclasses may effectively deposit more or less than the passed amount
170     * into the <code>Account</code>. For example, if a subclass includes a
171     * notion of funds matching, the subclass implementation of this method
172     * may match some or all of the deposited amount at the time of deposit,
173     * effectively increasing the deposited amount. Or, if a subclass
174     * includes the notion of a deposit fee, the subclass's implementation of
175     * this method may charge that fee by decrementing it from the account at
176     * the time of deposit, effectively reducing the deposited amount.
177     *
178     * @param amount amount to deposit
179     * @throws ArithmeticException if requested deposit would cause the
180     *     balance of this <code>Account</code> to exceed Long.MAX_VALUE.
181     * @throws IllegalArgumentException if requested withdrawal amount is
182     *     less than or equal to zero.
183     */
184     public void deposit(long amount) {
185
186         if (amount <= 0) {
187             throw new IllegalArgumentException();
188         }
189
190         if (overdraft > 0) {
191             if (amount < overdraft) {
192                 overdraft -= amount;
193             }
194             else {
195                 long diff = amount - overdraft;
196                 overdraft = 0;
197                 account.deposit(diff);
198             }
199         }
200         else {
201             account.deposit(amount);
202         }
203     }
204 }

An OverdraftAccount object on the heap:

Discussion

Guideline: Use composition to enlist the help of other objects.

Class Extension

Guideline: Use class extension to model permanent IS-A relationships.
Subclasses inherit the interface and, by default, the implementation of their superclass.
A subclass should have some kind of specialized behavior (it should provide the same service as the superclass, only differently)
A subclass may also offer new services not offered by the superclass
IS-A means "Is a specialized kind of," so watch out for:
- Bootsie IS-A Dog
- Car IS-AN Automobile

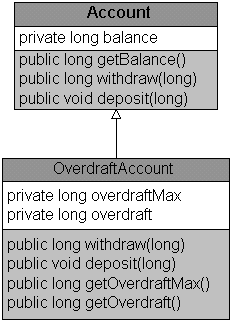

`OverdraftAccount` as Subclass

An OverdraftAccount IS-AN Account
OverdraftAccount has the same interface and fulfills the same semantic contract as Account
But, OverdraftAccount fulfills the semantic contract differently than Account

  1 package com.artima.examples.account.ex2;
  2
  3 /**
  4 * Represents a bank account with overdraft protection. Instances of this
  5 * class are instantiated with a specified maximum overdraft. If a client
  6 * attempts to withdraw more than the current account balance, the bank may
  7 * loan the amount in excess of the balance to the client. The overdraft
  8 * maximum passed to an <code>OverdraftAccount</code>'s constructor is the
  9 * maximum amount the bank will lend to the client in this manner. When a
 10 * client makes a deposit, the bank will pay itself back first before
 11 * increasing the account's balance.
 12 *
 13 * <p>
 14 * As described in superclass <code>Account</code>, money is stored in this
 15 * account in integral units. Clients can use this account to store any kind
 16 * of value, such as money or points, etc. The meaning of the integral units
 17 * stored in this account is a decision of the client that instantiates the
 18 * account. The maximum amount of units that can be stored as the current
 19 * balance of an <code>OverdraftAccount</code> is Long.MAX_VALUE.
 20 */
 21 public class OverdraftAccount extends Account {
 22
 23     /**
 24     * The maximum amount the bank will loan to the client.
 25     */
 26     private final long overdraftMax;
 27
 28     /**
 29     * The current amount the bank has loaned to the client which has not yet
 30     * been repaid. This must be zero to overdraftMax.
 31     */
 32     private long overdraft;
 33
 34     /**
 35     * Constructs a new <code>OverdraftAccount</code> with the passed
 36     * <code>overdraftMax</code>.
 37     *
 38     * @param overdraftMax the maximum amount the bank will loan to the
 39     *     client
 40     * @throws IllegalArgumentException if the passed
 41     *     <code>overdraftMax</code> is less than zero
 42     */
 43     public OverdraftAccount(long overdraftMax) {
 44
 45         if (overdraftMax < 0) {
 46             throw new IllegalArgumentException();
 47         }
 48
 49         this.overdraftMax = overdraftMax;
 50     }
 51
 52     /**
 53     * Returns the current overdraft, the amount the bank has loaned to the
 54     * client that has not yet been repaid.
 55     *
 56     * @return the current overdraft
 57     */
 58     public long getOverdraft() {
 59         return overdraft;
 60     }
 61
 62     /**
 63     * Returns the overdraft maximum, the maximum amount the bank will allow
 64     * the client to owe it. For each instance of
 65     * <code>OverdraftAccount</code>, the overdraft maximum is constant.
 66     *
 67     * @return the overdraft maximum
 68     */
 69     public long getOverdraftMax() {
 70         return overdraftMax;
 71     }
 72
 73     /**
 74     * Withdraws exactly the passed amount from the
 75     * <code>OverdraftAccount</code>. If the passed amount is less than or
 76     * equal to the current balance, all withdrawn funds will be taken from
 77     * the balance, and the balance will be decremented by the passed amount.
 78     * If the passed amount exceeds the current balance, the bank may loan
 79     * the client the difference. The bank will make the loan only if the
 80     * difference between the passed amount and the balance is less than or
 81     * equal to the available overdraft. The available overdraft is equal to
 82     * the current overdraft (the amount already loaned to the client and not
 83     * yet repaid) subtracted from the overdraft maximum, that was passed to
 84     * the constructor of the <code>OverdraftAccount</code>.
 85     *
 86     * <p>
 87     * If the passed amount less the current balance is less than or equal to
 88     * the available overdraft, the <code>withdraw</code> method returns the
 89     * requested amount, sets the current balance to zero, and records the
 90     * loan. Otherwise, if the passed amount less the current balance exceeds
 91     * the available overdraft, the <code>withdraw</code> method throws
 92     * <code>InsufficientFundsException</code>.
 93     *
 94     * @param amount the amount to withdraw
 95     * @return amount withdrawn from the <code>OverdraftAccount</code>
 96     * @throws InsufficientFundsException if the
 97     *     <code>OverdraftAccount</code> contains insufficient funds for the
 98     *     requested withdrawal. For an <code>OverdraftAccount</code>,
 99     *     insufficient funds means the requested amount to withrdraw
100     *     exceeds the sum of the current balance and the available
101     *     overdraft.
102     * @throws IllegalArgumentException if the passed <code>amount</code> to
103     *    withdraw is less than or equal to zero.
104     */
105     public long withdraw(long amount) throws InsufficientFundsException {
106
107         if (amount <= 0) {
108             throw new IllegalArgumentException();
109         }
110
111         long bal = getBalance();
112         if (bal >= amount) {
113
114             // Balance has sufficient funds, just take the
115             // money from the balance.
116             return super.withdraw(amount);
117         }
118
119         long shortfall = amount - bal;
120         long extraAvailable = overdraftMax - overdraft;
121
122         if (shortfall > extraAvailable) {
123             throw new InsufficientFundsException(shortfall - extraAvailable);
124         }
125         overdraft += shortfall;
126         super.withdraw(amount - shortfall);
127
128         // Note that here I'm not checking that the return value of
129         // super.withdraw is equal to amount - shortfall, because I'm
130         // trusting class Account to fulfill its contract.
131         return amount;
132     }
133
134     /**
135     * Deposits exactly the passed amount into the <code>Account</code>. If
136     * the current overdraft is zero, the balance will be increased by the
137     * passed amount. Otherwise, the bank will attempt to pay off the
138     * overdraft first, before increasing the current balance by the amount
139     * remaining after the overdraft is repaid, if any.
140     *
141     * <p>
142     * For example, if the balance is 200, the overdraft is 100, and the
143     * <code>deposit</code> method is invoked with a passed
144     * <code>amount</code> of 50, the bank would use all 50 of those monetary
145     * units to pay down the overdraft. The overdraft would be reduced to 50
146     * and the balance would remain at 200. If subsequently, the client
147     * deposits another 100 units, the bank would use 50 of those units to
148     * pay off the overdraft loan and direct the remaining 50 into the
149     * balance. The new overdraft would be 0 and the new balance would be
150     * 250.
151     *
152     * @param amount amount to deposit
153     * @throws ArithmeticException if requested deposit would cause the
154     *     balance of this <code>OverdraftAccount</code> to exceed
155     *     Long.MAX_VALUE.
156     */
157     public void deposit(long amount) {
158         if (overdraft > 0) {
159             if (amount < overdraft) {
160                 overdraft -= amount;
161             }
162             else {
163                 long diff = amount - overdraft;
164                 overdraft = 0;
165                 super.deposit(diff);
166             }
167         }
168         else {
169             super.deposit(amount);
170         }
171     }
172 }

An OverdraftAccount object on the heap:

Roles and Attributes

IS-A is necessary but not sufficient
Watch out for impermanent roles (try composition):
- Manager IS-AN Employee
- Peon IS-AN Employee
Watch out for attributes (try a final instance variable):
- RedCup IS-A Cup
- BlueCup IS-A Cup

State and Class

Behavior influenced by object's state (e.g. Account balance is $5000)
Behavior influenced by object's class (e.g. OverDraftAccount)
Non-permanent IS-A relationships (roles) must be modeled with state (perhaps composition)
Permanent IS-A relationships can be modeled either with state or with subclasses

How do You Decide?

To accomodate a likely vector of change by making it possible to plug in new subclasses in the future
To define a tight, close-knit family, such as the StampMachine.State family
To communicate important concepts in the design, where each subclass is about one concept
To form a vocabulary for programmers: If there's an account in the problem domain, there should likely be an Account in the solution.
Be unsurprising: Square IS-A Rectangle?

Why IS-A?

Inheritance gives you code reuse. (OO Claim: promotes code reuse)
Inheritance gives you polymorphism:

Account a = new OverdraftAccount(50000);
Don't use inheritance to get at code reuse or polymorphism without IS-A
Why? Because that's what inheritance means

Discussion

Guideline: Use class extension to model permanent IS-A relationships.

Inheritance vs. Composition

Guideline: Understand the difference between inheritance and composition.

Inheritance Yields (Slightly) Better Performance:

Composition's method forwarding/delegation will often be slower than inheritance's dynamic binding
Composition results in more objects getting instantiated, which can incur a performance cost at allocation, <init>(), and GC time

Composition Yields Better Flexibility:

Interfaces of classes involved in a composition relationship need not be compatible, so it's easier to change the interfaces
Composition allows you to delay creation of back-end objects until (and unless) you need them
Composition allows you to change back-end objects throughout the lifetime of the front-end object
Composition allows front-end objects to share the same back-end objects

But:

Composition's method forwarding/delegation results in more code that has to be written, debugged, and maintained.
Easier to add new subclasses than new front-end classes, unless you use composition with interfaces

Discussion

Guideline: Understand the difference between inheritance and composition.

Agenda

What Objects Are

An Account Class

Discussion

Using Composition

OverdraftAccount as Front-End Class

Discussion

Class Extension

OverdraftAccount as Subclass

Roles and Attributes

State and Class

How do You Decide?

Why IS-A?

Discussion

Inheritance vs. Composition

Discussion

An `Account` Class

`OverdraftAccount` as Front-End Class

`OverdraftAccount` as Subclass
