Module 6. Designing with Interfaces

Designing with Patterns Workshop
Designing with Interfaces

Agenda

Appreciate the significance of the interface.
Use interfaces to define large families or to say "What objects can do."
Use interface extension to decouple services or restrict the semantic contract.
Consider creating convenience implementations of your interfaces.
Use abstract classes to provide default behavior or define small families.

Java's Interface

Guideline: Appreciate the significance of the interface.
Understood the mechanics, but not the point

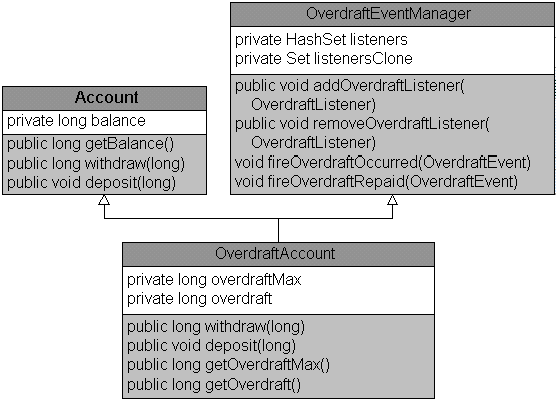

"How were Java's interfaces an improvement over C++'s multiple inheritance mechanism?"
Clue: I was using interfaces a lot more than I ever used multiple inheritance in C++

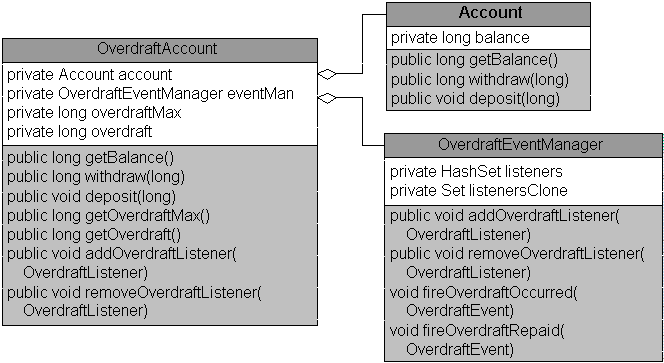

Code Reuse with Composition

Code Reuse: YES -- OverdraftAccount reuses all methods in Account and OverdraftEventManager
Polymorphism: NO -- Can't pass an OverdraftAccount to a method that expects an Account or OverdraftEventManager

  1 package com.artima.examples.account.ex3;
  2
  3 /**
  4 * Represents a bank account with overdraft protection. Instances of this
  5 * class are instantiated with a specified maximum overdraft. If a client
  6 * attempts to withdraw more than the current account balance, the bank may
  7 * loan the amount in excess of the balance to the client. The overdraft
  8 * maximum passed to an <code>OverdraftAccount</code>'s constructor is the
  9 * maximum amount the bank will lend to the client in this manner. When a
 10 * client makes a deposit, the bank will pay itself back first before
 11 * increasing the account's balance.
 12 *
 13 * <p>
 14 * Money is stored in this account in integral units. Clients can use this
 15 * account to store any kind of value, such as money or points, etc. The
 16 * meaning of the integral units stored in this account is a decision of the
 17 * client that instantiates the account. The maximum amount of units that can
 18 * be stored as the current balance of an <code>Account</code> is
 19 * Long.MAX_VALUE.
 20 */
 21 public class OverdraftAccount {
 22
 23     /**
 24     * Helper back-end <code>Account</code> object
 25     */
 26     private Account account = new Account();
 27
 28     /**
 29     * Helper back-end <code>OverdraftEventManager</code> object
 30     */
 31     private OverdraftEventManager eventMan
 32         = new OverdraftEventManager();
 33
 34     /**
 35     * The maximum amount the bank will loan to the client.
 36     */
 37     private final long overdraftMax;
 38
 39     /**
 40     * The current amount the bank has loaned to the client which has not yet
 41     * been repaid. This value must at all times be greater than or equal to
 42     * zero, and less than or equal to <code>overdraftMax</code>. If this
 43     * value is greater than zero, then the balance of the helper
 44     * <code>Account</code> (referenced from the <code>account</code>
 45     * instance variable) must be exactly zero.
 46     */
 47     private long overdraft;
 48
 49     /**
 50     * Constructs a new <code>OverdraftAccount</code> with the passed
 51     * overdraft maximum.
 52     *
 53     * @param overdraftMax the maximum amount the bank will loan to the
 54     *     client
 55     */
 56     public OverdraftAccount(long overdraftMax) {
 57         this.overdraftMax = overdraftMax;
 58     }
 59
 60     /**
 61     * Returns the current overdraft, the amount the bank has loaned to the
 62     * client that has not yet been repaid.
 63     *
 64     * @return the current overdraft
 65     */
 66     public long getOverdraft() {
 67         return overdraft;
 68     }
 69
 70     /**
 71     * Returns the overdraft maximum, the maximum amount the bank will allow
 72     * the client to owe it. For each instance of
 73     * <code>OverdraftAccount</code>, the overdraft maximum is constant.
 74     *
 75     * @return the overdraft maximum
 76     */
 77     public long getOverdraftMax() {
 78         return overdraftMax;
 79     }
 80
 81     /**
 82     * Gets the current balance of this <code>OverdraftAccount</code>.
 83     *
 84     * @return the current balance
 85     */
 86     public long getBalance() {
 87         return account.getBalance();
 88     }
 89
 90     /**
 91     * Withdraws the passed amount from this <code>OverdraftAccount</code>.
 92     * If the passed amount is less than or equal to the current balance, all
 93     * withdrawn funds will be taken from the balance, and the balance will
 94     * be decremented by the passed amount. If the passed amount exceeds the
 95     * current balance, the bank may loan the client the difference. The bank
 96     * will make the loan only if the difference between the passed amount
 97     * and the balance (the shortfall) is less than or equal to the available
 98     * overdraft. The available overdraft is equal to the current overdraft
 99     * (the amount already loaned to the client and not yet repaid),
100     * subtracted from the overdraft maximum, which is passed to the
101     * constructor of any <code>OverdraftAccount</code>.
102     *
103     * <p>
104     * If the passed amount is less than or equal to the current balance, the
105     * <code>withdraw</code> method decrements the current balance by the
106     * passed amount and returns the passed amount. If the passed amount is
107     * greater than the current balance, but the passed amount minus the
108     * current balance is less than or equal to the available overdraft, the
109     * <code>withdraw</code> method sets the current balance to zero, records
110     * the loan, and returns the requested amount. Otherwise, the passed
111     * amount minus the current balance exceeds the available overdraft, so
112     * the <code>withdraw</code> method throws
113     * <code>InsufficientFundsException</code>.
114     *
115     * Subclasses must withdraw at least the passed amount, but may
116     * effectively withdraw more. For example, if a subclass includes a
117     * notion of a withrawal fee, the subclass's implementation of this
118     * method may charge that fee by decrementing it from the account at the
119     * time of withdrawal.
120     *
121     * @param amount amount to withdraw
122     * @return amount withdrawn from the <code>OverdraftAccount</code>
123     * @throws InsufficientFundsException if the
124     *     <code>OverdraftAccount</code> contains insufficient funds for the
125     *     requested withdrawal
126     * @throws IllegalArgumentException if requested withdrawal amount is
127     *     less than or equal to zero.
128     */
129     public long withdraw(long amount) throws InsufficientFundsException {
130
131         if (amount <= 0) {
132             throw new IllegalArgumentException();
133         }
134
135         long bal = account.getBalance();
136         if (bal >= amount) {
137
138             // Balance has sufficient funds, so just take the
139             // money from the balance.
140             return account.withdraw(amount);
141         }
142
143         long shortfall = amount - bal;
144         long extraAvailable = overdraftMax - overdraft;
145
146         if (shortfall > extraAvailable) {
147             throw new InsufficientFundsException(shortfall
148                 - extraAvailable);
149         }
150         overdraft += shortfall;
151         account.withdraw(amount - shortfall);
152
153         OverdraftEvent event = new OverdraftEvent(this, overdraft,
154             shortfall);
155         eventMan.fireOverdraftOccurred(event);
156
157         return amount;
158     }
159
160     /**
161     * Deposits the passed amount into the <code>OverdraftAccount</code>. If
162     * the current overdraft is zero, the balance will be increased by the
163     * passed amount. Otherwise, the bank will attempt to pay off the
164     * overdraft first, before increasing the current balance by the amount
165     * remaining after the overdraft is repaid, if any.
166     *
167     * <p>
168     * For example, if the balance is 0, the overdraft is 100, and the
169     * <code>deposit</code> method is invoked with a passed
170     * <code>amount</code> of 50, the bank would use all 50 of those monetary
171     * units to pay down the overdraft. The overdraft would be reduced to 50
172     * and the balance would remain at 0. If subsequently, the client
173     * deposits another 100 units, the bank would use 50 of those units to
174     * pay off the overdraft loan and direct the remaining 50 into the
175     * balance. The new overdraft would be 0 and the new balance would be
176     * 50.
177     *
178     * Subclasses may effectively deposit more or less than the passed amount
179     * into the <code>Account</code>. For example, if a subclass includes a
180     * notion of funds matching, the subclass implementation of this method
181     * may match some or all of the deposited amount at the time of deposit,
182     * effectively increasing the deposited amount. Or, if a subclass
183     * includes the notion of a deposit fee, the subclass's implementation of
184     * this method may charge that fee by decrementing it from the account at
185     * the time of deposit, effectively reducing the deposited amount.
186     *
187     * @param amount amount to deposit
188     * @throws ArithmeticException if requested deposit would cause the
189     *     balance of this <code>Account</code> to exceed Long.MAX_VALUE.
190     * @throws IllegalArgumentException if requested withdrawal amount is
191     *     less than or equal to zero.
192     */
193     public void deposit(long amount) {
194
195         if (amount <= 0) {
196             throw new IllegalArgumentException();
197         }
198
199         if (overdraft > 0) {
200
201             long amountRepaid = 0;
202
203             if (amount < overdraft) {
204                 amountRepaid = amount;
205                 overdraft -= amount;
206             }
207             else {
208                 long diff = amount - overdraft;
209                 amountRepaid = diff;
210                 overdraft = 0;
211                 account.deposit(diff);
212             }
213
214             OverdraftEvent event = new OverdraftEvent(this, overdraft,
215                 amountRepaid);
216             eventMan.fireOverdraftRepaid(event);
217         }
218         else {
219             account.deposit(amount);
220         }
221     }
222
223     /**
224     * Adds the specified overdraft listener to receive overdraft events from
225     * this <code>OverdraftAccount</code>. If <code>l</code> is
226     * <code>null</code>, no exception is thrown and no action is performed.
227     * If <code>l</code> is already registered as a listener, no action is
228     * performed.
229     *
230     * @param l the <code>OverdraftEventListener</code> to add
231     */
232     public void addOverdraftListener(OverdraftListener l) {
233
234         eventMan.addOverdraftListener(l);
235     }
236
237     /**
238     * Removes the specified overdraft listener so that it no longer receives
239     * overdraft events from this <code>OverdraftAccount</code>. This method
240     * performs no function, nor does it throw an exception, if the listener
241     * specified by the argument was not previously added to this component.
242     * If <code>l</code> is <code>null</code>, no exception is thrown and no
243     * action is performed.
244     *
245     * @param l the <code>OverdraftEventListener</code> to remove
246     */
247     public void removeOverdraftListener(OverdraftListener l) {
248
249         eventMan.removeOverdraftListener(l);
250     }
251 }


 1 package com.artima.examples.account.ex3;
 2
 3 /**
 4 * Represents a bank account. Money is stored in this account in integral
 5 * units. Clients can use this account to store any kind of value, such as
 6 * money or points, etc. The meaning of the integral units stored in this
 7 * account is a decision of the client that instantiates the account. The
 8 * maximum amount of units that can be stored as the current balance of an
 9 * <code>Account</code> is Long.MAX_VALUE.
10 */
11 public class Account {
12
13     /**
14     * The current balance
15     */
16     private long balance;
17
18     /**
19     * Withdraws exactly the passed amount from the <code>Account</code>.
20     * Subclasses must withdraw at least the passed amount, but may
21     * effectively withdraw more. For example, if a subclass includes a
22     * notion of a withrawal fee, the subclass's implementation of this
23     * method may charge that fee by decrementing it from the account at the
24     * time of withdrawal.
25     *
26     * @param amount amount to withdraw
27     * @return amount withdrawn from the <code>Account</code>
28     * @throws InsufficientFundsException if the <code>Account</code>
29     *     contains insufficient funds for the requested withdrawal
30     * @throws IllegalArgumentException if the passed <code>amount</code> to
31     *    withdraw is less than or equal to zero.
32     */
33     public long withdraw(long amount)
34         throws InsufficientFundsException {
35
36         if (amount <= 0) {
37             throw new IllegalArgumentException();
38         }
39
40         if (amount > balance) {
41             throw new InsufficientFundsException(amount - balance);
42         }
43
44         balance -= amount;
45         return amount;
46     }
47
48     /**
49     * Deposits exactly the passed amount into the <code>Account</code>.
50     * Subclasses may effectively deposit more or less than the passed amount
51     * into the <code>Account</code>. For example, if a subclass includes a
52     * notion of funds matching, the subclass implementation of this method
53     * may match some or all of the deposited amount at the time of deposit,
54     * effectively increasing the deposited amount. Or, if a subclass
55     * includes the notion of a deposit fee, the subclass's implementation of
56     * this method may charge that fee by decrementing it from the account at
57     * the time of deposit, effectively reducing the deposited amount.
58     *
59     * @param amount amount to deposit
60     * @throws ArithmeticException if requested deposit would cause the
61     *     balance of this <code>Account</code> to exceed Long.MAX_VALUE.
62     * @throws IllegalArgumentException if requested deposit is less than
63     *     or equal to zero.
64     */
65     public void deposit(long amount) {
66
67         if (amount <= 0) {
68             throw new IllegalArgumentException();
69         }
70
71         long newBal = balance + amount;
72
73         if (newBal < 0) {
74             throw new ArithmeticException();
75         }
76
77         balance = newBal;
78     }
79
80     /**
81     * Gets the current balance of this <code>Account</code>
82     *
83     * @return the current balance
84     */
85     public long getBalance() {
86         return balance;
87     }
88 }
89

  1 package com.artima.examples.account.ex3;
  2
  3 import java.util.Set;
  4 import java.util.Iterator;
  5 import java.util.HashSet;
  6
  7 /**
  8 * A class that manages registration and unregistration of
  9 * <code>OverdraftListener</code>s and the firing of
 10 * <code>OverdraftEvent</code>s.
 11 *
 12 * @author Bill Venners
 13 */
 14 class OverdraftEventManager {
 15
 16     /**
 17     * Unsynchronized <code>HashSet</code> to which listeners are added and
 18     * removed via the synchronized methods <code>addOverdraftListener</code>
 19     * and <code>removeOverdraftListener</code> methods.
 20     */
 21     private HashSet listeners = new HashSet();
 22
 23     /**
 24     * Clone of the <code>listeners</code> <code>HashSet</code>, which is
 25     * used by the <code>fireOverdraftOccurred</code> and
 26     * <code>fireOverdraftRepaid</code> methods to propagate events. This
 27     * <code>HashSet</code> always contains a most recent snapshot of the
 28     * <code>listeners</code> <code>HashSet</code>, but this
 29     * <code>HashSet</code> is never modified, only replaced. Because this
 30     * <code>HashSet</code> is never modified, the fire methods can iterate
 31     * through the set without synchronization. This implementation approach
 32     * is geared towards providing optimum performance for the expected run
 33     * time usage in which adding and removing listeners happens less
 34     * frequently than firing events to those listeners.
 35     */
 36     private Set listenersClone = new HashSet();
 37
 38     /**
 39     * Constructs a new <code>OverdraftEventManager</code>. The
 40     * <code>OverdraftEventManager</code> starts its life with an empty
 41     * listeners list.
 42     */
 43     public OverdraftEventManager() {
 44     }
 45
 46     /**
 47     * Adds the specified overdraft listener to receive overdraft events. If
 48     * <code>l</code> is <code>null</code>, no exception is thrown and no
 49     * action is performed. If <code>l</code> is already registered as a
 50     * listener, no action is performed.
 51     *
 52     * @param l the <code>OverdraftEventListener</code> to add
 53     */
 54     public synchronized void addOverdraftListener(OverdraftListener l) {
 55
 56         listeners.add(l);
 57         listenersClone = (Set) listeners.clone();
 58     }
 59
 60     /**
 61     * Removes the specified overdraft listener so that it no longer receives
 62     * overdraft events. This method performs no function, nor does it throw
 63     * an exception, if the listener specified by the argument was not
 64     * previously added to this component. If <code>l</code> is
 65     * <code>null</code>, no exception is thrown and no action is performed.
 66     *
 67     * @param l the <code>OverdraftEventListener</code> to remove
 68     */
 69     public synchronized void removeOverdraftListener(OverdraftListener l) {
 70
 71         listeners.remove(l);
 72         listenersClone = (Set) listeners.clone();
 73     }
 74
 75     /**
 76     * Fires overdraftOccurred events to registered listeners.
 77     *
 78     * @param event the <code>OverdraftEvent</code> to propagate
 79     */
 80     public void fireOverdraftOccurred(OverdraftEvent event) {
 81
 82         Iterator it = listenersClone.iterator();
 83         while (it.hasNext()) {
 84             OverdraftListener l = (OverdraftListener) it.next();
 85             l.overdraftOccurred(event);
 86         }
 87     }
 88
 89     /**
 90     * Fires overdraftRepaid events to registered listeners.
 91     *
 92     * @param event the <code>OverdraftEvent</code> to propagate
 93     */
 94     public void fireOverdraftRepaid(OverdraftEvent event) {
 95
 96         Iterator it = listenersClone.iterator();
 97         while (it.hasNext()) {
 98             OverdraftListener l = (OverdraftListener) it.next();
 99             l.overdraftRepaid(event);
100         }
101     }
102 }

Full Blown Multiple Inheritance

Code Reuse: YES -- OverdraftAccount inherits or invokes all methods in Account and OverdraftEventManager
Polymorphism: YES -- Can pass an OverdraftAccount to a method that expects a Account or OverdraftEventManager

Polymorphism with Pure ABCs

Abstract Base Classes (ABCs) are a multiple inheritance special case
Polymorphism: YES -- Can pass an OverdraftAccount to a method that expects a Account or OverdraftEventManager
Code Reuse: NO -- OverdraftAccount can't reuse methods from Account and OverdraftEventManager, because none exist
(ABCs give you the opposite of composition)

Multiple Inheritance Usefulness

Full blown multiple inheritance gives you more code reuse and polymorphism

Useful in 5% of design situations
ABC special case of multiple inheritance gives you more polymorphism, but no code reuse

Useful in 50% of design situations
James Gosling took the 50% case and called it the interface
But left the 5% case out. (Can mimic full blown multiple inheritance with interfaces and composition)
Gosling also addressed the diamond problem

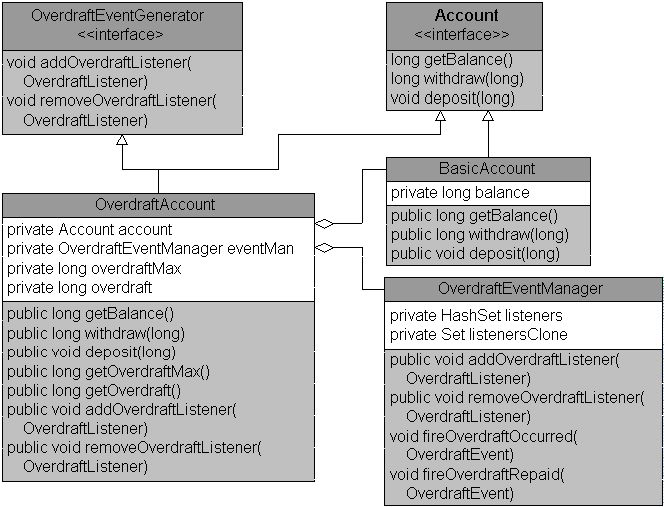

Composition with `interface`s

Polymorphism: YES -- Can pass an OverdraftAccount to a method that expects a Account or OverdraftEventGenerator
Code Reuse: YES -- OverdraftAccount reuses all methods in BasicAccount and OverdraftEventManager

 1 package com.artima.examples.account.ex4;
 2
 3 /**
 4 * Represents a bank account. Money is stored in this account in integral
 5 * units. Clients can use this account to store any kind of value, such as
 6 * money or points, etc. The meaning of the integral units stored in this
 7 * account is a decision of the client that instantiates the account. The
 8 * maximum amount of units that can be stored as the current balance of an
 9 * <code>Account</code> is Long.MAX_VALUE.
10 */
11 public interface Account {
12
13     /**
14     * Withdraws exactly the passed amount from the <code>Account</code>.
15     * Subclasses must withdraw at least the passed amount, but may
16     * effectively withdraw more. For example, if a subclass includes a
17     * notion of a withrawal fee, the subclass's implementation of this
18     * method may charge that fee by decrementing it from the account at the
19     * time of withdrawal.
20     *
21     * @param amount amount to withdraw
22     * @return amount withdrawn from the <code>Account</code>
23     * @throws InsufficientFundsException if the <code>Account</code>
24     *     contains insufficient funds for the requested withdrawal
25     * @throws IllegalArgumentException if the passed <code>amount</code> to
26     *    withdraw is less than or equal to zero.
27     */
28     long withdraw(long amount) throws InsufficientFundsException;
29
30     /**
31     * Deposits exactly the passed amount into the <code>Account</code>.
32     * Subclasses may effectively deposit more or less than the passed amount
33     * into the <code>Account</code>. For example, if a subclass includes a
34     * notion of funds matching, the subclass implementation of this method
35     * may match some or all of the deposited amount at the time of deposit,
36     * effectively increasing the deposited amount. Or, if a subclass
37     * includes the notion of a deposit fee, the subclass's implementation of
38     * this method may charge that fee by decrementing it from the account at
39     * the time of deposit, effectively reducing the deposited amount.
40     *
41     * @param amount amount to deposit
42     * @throws ArithmeticException if requested deposit would cause the
43     *     balance of this <code>Account</code> to exceed Long.MAX_VALUE.
44     * @throws IllegalArgumentException if requested deposit is less than
45     *     or equal to zero.
46     */
47     void deposit(long amount);
48
49     /**
50     * Gets the current balance of this <code>Account</code>.
51     *
52     * @return the current balance
53     */
54     long getBalance();
55 }
56


 1 package com.artima.examples.account.ex4;
 2
 3 /**
 4 * A generator of <code>OverdraftEvent</code>s. Classes that implement this
 5 * interface manages the registration and unregistration of
 6 * <code>OverdraftListener</code>s and the firing of
 7 * <code>OverdraftEvent</code>s.
 8 *
 9 * @author Bill Venners
10 */
11 public interface OverdraftEventGenerator {
12
13     /**
14     * Adds the specified overdraft listener to receive overdraft events. If
15     * <code>l</code> is <code>null</code>, no exception is thrown and no
16     * action is performed. If <code>l</code> is already registered as a
17     * listener, no action is performed.
18     *
19     * @param l the <code>OverdraftEventListener</code> to add
20     */
21     void addOverdraftListener(OverdraftListener l);
22
23     /**
24     * Removes the specified overdraft listener so that it no longer receives
25     * overdraft events. This method performs no function, nor does it throw
26     * an exception, if the listener specified by the argument was not
27     * previously added to this component. If <code>l</code> is
28     * <code>null</code>, no exception is thrown and no action is performed.
29     *
30     * @param l the <code>OverdraftEventListener</code> to remove
31     */
32     void removeOverdraftListener(OverdraftListener l);
33 }


  1 package com.artima.examples.account.ex4;
  2
  3 /**
  4 * Represents a bank account with overdraft protection. Instances of this
  5 * class are instantiated with a specified maximum overdraft. If a client
  6 * attempts to withdraw more than the current account balance, the bank may
  7 * loan the amount in excess of the balance to the client. The overdraft
  8 * maximum passed to an <code>OverdraftAccount</code>'s constructor is the
  9 * maximum amount the bank will lend to the client in this manner. When a
 10 * client makes a deposit, the bank will pay itself back first before
 11 * increasing the account's balance.
 12 *
 13 * <p>
 14 * Money is stored in this account in integral units. Clients can use this
 15 * account to store any kind of value, such as money or points, etc. The
 16 * meaning of the integral units stored in this account is a decision of the
 17 * client that instantiates the account. The maximum amount of units that can
 18 * be stored as the current balance of an <code>OverdraftAccount</code> is
 19 * Long.MAX_VALUE.
 20 */
 21 public class OverdraftAccount implements Account, OverdraftEventGenerator {
 22
 23     /**
 24     * Helper back-end <code>BasicAccount</code> object
 25     */
 26     private BasicAccount account = new BasicAccount();
 27
 28     /**
 29     * Helper back-end <code>OverdraftEventManager</code> object
 30     */
 31     private OverdraftEventManager eventMan
 32         = new OverdraftEventManager();
 33
 34     /**
 35     * The maximum amount the bank will loan to the client.
 36     */
 37     private final long overdraftMax;
 38
 39     /**
 40     * The current amount the bank has loaned to the client which has not yet
 41     * been repaid. This value must at all times be greater than or equal to
 42     * zero, and less than or equal to <code>overdraftMax</code>. If this
 43     * value is greater than zero, then the balance of the helper
 44     * <code>BasicAccount</code> (referenced from the <code>account</code>
 45     * instance variable) must be exactly zero.
 46     */
 47     private long overdraft;
 48
 49     /**
 50     * Constructs a new <code>OverdraftAccount</code> with the passed
 51     * overdraft maximum.
 52     *
 53     * @param overdraftMax the maximum amount the bank will loan to the
 54     *     client
 55     */
 56     public OverdraftAccount(long overdraftMax) {
 57         this.overdraftMax = overdraftMax;
 58     }
 59
 60     /**
 61     * Returns the current overdraft, the amount the bank has loaned to the
 62     * client that has not yet been repaid.
 63     *
 64     * @return the current overdraft
 65     */
 66     public long getOverdraft() {
 67         return overdraft;
 68     }
 69
 70     /**
 71     * Returns the overdraft maximum, the maximum amount the bank will allow
 72     * the client to owe it. For each instance of
 73     * <code>OverdraftAccount</code>, the overdraft maximum is constant.
 74     *
 75     * @return the overdraft maximum
 76     */
 77     public long getOverdraftMax() {
 78         return overdraftMax;
 79     }
 80
 81     /**
 82     * Gets the current balance of this <code>OverdraftAccount</code>.
 83     *
 84     * @return the current balance
 85     */
 86     public long getBalance() {
 87         return account.getBalance();
 88     }
 89
 90     /**
 91     * Withdraws the passed amount from this <code>OverdraftAccount</code>.
 92     * If the passed amount is less than or equal to the current balance, all
 93     * withdrawn funds will be taken from the balance, and the balance will
 94     * be decremented by the passed amount. If the passed amount exceeds the
 95     * current balance, the bank may loan the client the difference. The bank
 96     * will make the loan only if the difference between the passed amount
 97     * and the balance (the shortfall) is less than or equal to the available
 98     * overdraft. The available overdraft is equal to the current overdraft
 99     * (the amount already loaned to the client and not yet repaid),
100     * subtracted from the overdraft maximum, which is passed to the
101     * constructor of any <code>OverdraftAccount</code>.
102     *
103     * <p>
104     * If the passed amount is less than or equal to the current balance, the
105     * <code>withdraw</code> method decrements the current balance by the
106     * passed amount and returns the passed amount. If the passed amount is
107     * greater than the current balance, but the passed amount minus the
108     * current balance is less than or equal to the available overdraft, the
109     * <code>withdraw</code> method sets the current balance to zero, records
110     * the loan, and returns the requested amount. Otherwise, the passed
111     * amount minus the current balance exceeds the available overdraft, so
112     * the <code>withdraw</code> method throws
113     * <code>InsufficientFundsException</code>.
114     *
115     * Subclasses must withdraw at least the passed amount, but may
116     * effectively withdraw more. For example, if a subclass includes a
117     * notion of a withrawal fee, the subclass's implementation of this
118     * method may charge that fee by decrementing it from the account at the
119     * time of withdrawal.
120     *
121     * @param amount amount to withdraw
122     * @return amount withdrawn from the <code>OverdraftAccount</code>
123     * @throws InsufficientFundsException if the
124     *     <code>OverdraftAccount</code> contains insufficient funds for the
125     *     requested withdrawal
126     * @throws IllegalArgumentException if requested withdrawal amount is
127     *     less than or equal to zero.
128     */
129     public long withdraw(long amount) throws InsufficientFundsException {
130
131         if (amount <= 0) {
132             throw new IllegalArgumentException();
133         }
134
135         long bal = account.getBalance();
136         if (bal >= amount) {
137
138             // Balance has sufficient funds, so just take the
139             // money from the balance.
140             return account.withdraw(amount);
141         }
142
143         long shortfall = amount - bal;
144         long extraAvailable = overdraftMax - overdraft;
145
146         if (shortfall > extraAvailable) {
147             throw new InsufficientFundsException(shortfall
148                 - extraAvailable);
149         }
150         overdraft += shortfall;
151         account.withdraw(amount - shortfall);
152
153         OverdraftEvent event = new OverdraftEvent(this, overdraft,
154             shortfall);
155         eventMan.fireOverdraftOccurred(event);
156
157         return amount;
158     }
159
160     /**
161     * Deposits the passed amount into the <code>OverdraftAccount</code>. If
162     * the current overdraft is zero, the balance will be increased by the
163     * passed amount. Otherwise, the bank will attempt to pay off the
164     * overdraft first, before increasing the current balance by the amount
165     * remaining after the overdraft is repaid, if any.
166     *
167     * <p>
168     * For example, if the balance is 0, the overdraft is 100, and the
169     * <code>deposit</code> method is invoked with a passed
170     * <code>amount</code> of 50, the bank would use all 50 of those monetary
171     * units to pay down the overdraft. The overdraft would be reduced to 50
172     * and the balance would remain at 0. If subsequently, the client
173     * deposits another 100 units, the bank would use 50 of those units to
174     * pay off the overdraft loan and direct the remaining 50 into the
175     * balance. The new overdraft would be 0 and the new balance would be
176     * 50.
177     *
178     * Subclasses may effectively deposit more or less than the passed amount
179     * into the <code>OverdraftAccount</code>. For example, if a subclass
180     * includes a notion of funds matching, the subclass implementation of
181     * this method may match some or all of the deposited amount at the time
182     * of deposit, effectively increasing the deposited amount. Or, if a
183     * subclass includes the notion of a deposit fee, the subclass's
184     * implementation of this method may charge that fee by decrementing it
185     * from the account at the time of deposit, effectively reducing the
186     * deposited amount.
187     *
188     * @param amount amount to deposit
189     * @throws ArithmeticException if requested deposit would cause the
190     *     balance of this <code>OverdraftAccount</code> to exceed
191     *     Long.MAX_VALUE.
192     * @throws IllegalArgumentException if requested withdrawal amount is
193     *     less than or equal to zero.
194     */
195     public void deposit(long amount) {
196
197         if (amount <= 0) {
198             throw new IllegalArgumentException();
199         }
200
201         if (overdraft > 0) {
202
203             long amountRepaid = 0;
204
205             if (amount < overdraft) {
206                 amountRepaid = amount;
207                 overdraft -= amount;
208             }
209             else {
210                 long diff = amount - overdraft;
211                 amountRepaid = diff;
212                 overdraft = 0;
213                 account.deposit(diff);
214             }
215
216             OverdraftEvent event = new OverdraftEvent(this, overdraft,
217                 amountRepaid);
218             eventMan.fireOverdraftRepaid(event);
219         }
220         else {
221             account.deposit(amount);
222         }
223     }
224
225     /**
226     * Adds the specified overdraft listener to receive overdraft events from
227     * this <code>OverdraftAccount</code>. If <code>l</code> is
228     * <code>null</code>, no exception is thrown and no action is performed.
229     * If <code>l</code> is already registered as a listener, no action is
230     * performed.
231     *
232     * @param l the <code>OverdraftEventListener</code> to add
233     */
234     public void addOverdraftListener(OverdraftListener l) {
235
236         eventMan.addOverdraftListener(l);
237     }
238
239     /**
240     * Removes the specified overdraft listener so that it no longer receives
241     * overdraft events from this <code>OverdraftAccount</code>. This method
242     * performs no function, nor does it throw an exception, if the listener
243     * specified by the argument was not previously added to this component.
244     * If <code>l</code> is <code>null</code>, no exception is thrown and no
245     * action is performed.
246     *
247     * @param l the <code>OverdraftEventListener</code> to remove
248     */
249     public void removeOverdraftListener(OverdraftListener l) {
250
251         eventMan.removeOverdraftListener(l);
252     }
253 }


 1 package com.artima.examples.account.ex4;
 2
 3 /**
 4 * Represents a bank account. Money is stored in this account in integral
 5 * units. Clients can use this account to store any kind of value, such as
 6 * money or points, etc. The meaning of the integral units stored in this
 7 * account is a decision of the client that instantiates the account. The
 8 * maximum amount of units that can be stored as the current balance of an
 9 * <code>BasicAccount</code> is Long.MAX_VALUE.
10 */
11 public class BasicAccount implements Account {
12
13     /**
14     * The current balance
15     */
16     private long balance;
17
18     /**
19     * Withdraws exactly the passed amount from the
20     * <code>BasicAccount</code>. Subclasses must withdraw at least the
21     * passed amount, but may effectively withdraw more. For example, if a
22     * subclass includes a notion of a withrawal fee, the subclass's
23     * implementation of this method may charge that fee by decrementing it
24     * from the account at the time of withdrawal.
25     *
26     * @param amount amount to withdraw
27     * @return amount withdrawn from the <code>BasicAccount</code>
28     * @throws InsufficientFundsException if the <code>BasicAccount</code>
29     *     contains insufficient funds for the requested withdrawal
30     * @throws IllegalArgumentException if the passed <code>amount</code> to
31     *    withdraw is less than or equal to zero.
32     */
33     public long withdraw(long amount) throws InsufficientFundsException {
34
35         if (amount <= 0) {
36             throw new IllegalArgumentException();
37         }
38
39         if (amount > balance) {
40             throw new InsufficientFundsException(amount - balance);
41         }
42
43         balance -= amount;
44         return amount;
45     }
46
47     /**
48     * Deposits exactly the passed amount into the <code>BasicAccount</code>.
49     * Subclasses may effectively deposit more or less than the passed amount
50     * into the <code>BasicAccount</code>. For example, if a subclass
51     * includes a notion of funds matching, the subclass implementation of
52     * this method may match some or all of the deposited amount at the time
53     * of deposit, effectively increasing the deposited amount. Or, if a
54     * subclass includes the notion of a deposit fee, the subclass's
55     * implementation of this method may charge that fee by decrementing it
56     * from the account at the time of deposit, effectively reducing the
57     * deposited amount.
58     *
59     * @param amount amount to deposit
60     * @throws ArithmeticException if requested deposit would cause the
61     *     balance of this <code>BasicAccount</code> to exceed
62     *     Long.MAX_VALUE.
63     * @throws IllegalArgumentException if requested deposit is less than
64     *     or equal to zero.
65     */
66     public void deposit(long amount) {
67
68         if (amount <= 0) {
69             throw new IllegalArgumentException();
70         }
71
72         long newBal = balance + amount;
73
74         if (newBal < 0) {
75             throw new ArithmeticException();
76         }
77
78         balance = newBal;
79     }
80
81     /**
82     * Gets the current balance of this <code>BasicAccount</code>.
83     *
84     * @return the current balance
85     */
86     public long getBalance() {
87         return balance;
88     }
89 }
90

Why are `interface`s so useful?

Often, semantic contract of classes to some extent involves implementation (contract is less abstract)
ABCs (interfaces): allow you to say what services an object provides, without saying what that object is (contract is more abstract)
Full-blown MI: what an object does intermingles with what an object is
Interfaces give you implementation choices: an abstract method inherited from an interface can be implemented in many ways:
- explicitly
- inherited from a superclass
- delegated to back-end objects in a composition relationship
Interface method parameter and return types allow you to program to interfaces, not implementations -- makes code very versatile

Interfaces and C++

If interfaces are so useful in Java, why is it that you did not make use of pure virtual base classes in C++?
Is there some difference between them which make the Java interface easier to use?
Has Java, by disallowing multiple implementation inheritance, made you take the step of separating implementation from interface in a way you would not have done without being forced to?
Also, if you now went back to C++ would you now make much more use of virtual base classes than you did before?

Discussion

Guideline: Understand the significance of the interface.

How to use `interface`s

Use interfaces to define large families or to say "What objects can do."
Noun interfaces say "What objects are," without burdening subclasses with any implementation
Adjective interfaces say what objects can do, no matter what they are
Tag interfaces say what you can can do to objects, no matter what they are

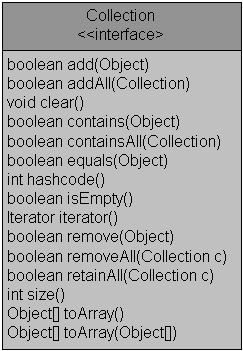

A Noun `interface`

Collection means: an object is a collection of other objects
Defines a set of services offered by all collections, syntax and semantics
Silent on implementation, because no default implementation makes sense
"Collection" is a broad concept that represents a big family

An Adjective `interface`

Comparable means: an object can compare itself with another object
Adjective interfaces don't say what objects are
They say what objects can do, no matter what those objects are

An Tag `interface`

Serializable means: I can serialize an object
Tag interfaces don't say what objects can do for you
They say what you can do to or with objects
Meta-semantics: not a contract, more like a permission
After 1.5, probably better accomplished with an annotation

Pulling `interface`s out of Thin Air

So interfaces are great. They separate implementation from class signatures, allowing us more freedom to change our implementation. So should I use an interface to wrap every class whose implementation might change in the future? Depending on your level of paranoia about implementation changes, this could include almost every class of a program.
Don't look at classes and try to figure out what method subsets should form interfaces

where n is the number of methods
Discover noun interfaces when the family is so broad that no default implementation makes sense
Often discover adjective interfaces when thinking about parameter and return types for method signatures
Tag interfaces are, and should be, rare

Discussion

Use interfaces to define large families or to say "What objects can do."

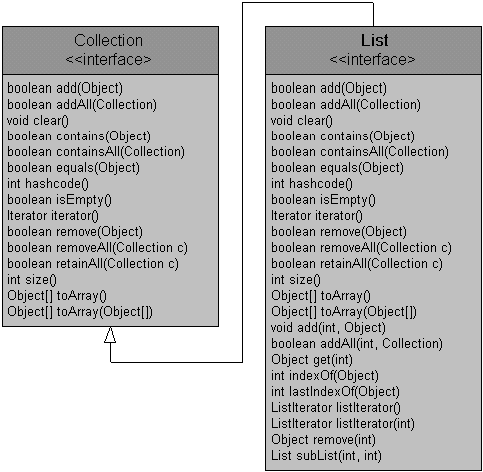

Service Decoupling

Guideline: Use interface extension to decouple services or restrict the semantic contract.
Can decouple services from one another, to encourage clients code be as type-precise as possible
List adds void add(int, Object), Object get(int), ListIterator listIterator(), etc...

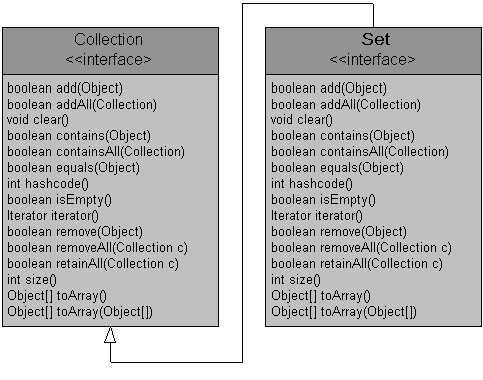

Restricting Semantics

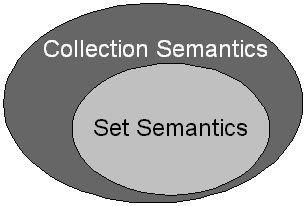

Subinterface semantics can be more concrete (more restrictive) than superinterface semantics
Set doesn't declare any new methods compared to Collection
Semantic contract of boolean add(Object):
- Collection - Ensures that this collection contains the specified element.
- Set - Adds the specified element to this set if it is not already present.
Can't just slap interfaces together -- semantics must be compatible (though not necessarily identical)

Discussion

Guideline: Use interface extension to decouple services or restrict the semantic contract.

Convenience Implementations

Guideline: Consider creating convenience implementations of your interfaces.
Convenience implementations can help make common things easy
Can provide default implementations that are optional
MouseAdapter is a convenience implementation of MouseListener

Has empty mouseClicked(), mousePressed(), etc...
AbstractEntry is a convenience implementation of Entry

Has default implementations of equals(), hashCode(), and toString()
AbstractCollection, AbstractList, AbstractSet, AbstractMap, AbstractTableModel, ...

Discussion

Guideline: Consider creating convenience implementations of your interfaces.

Abstract Classes

Guideline: Use abstract classes to provide default behavior or define a family.
How do you choose between an abstract class and an interface?
If you have default behavior, then you must use an abstract class
Otherwise, use an interface unless you want to communicate limits
Type Canine has one method, howl(), that is abstract
If Canine is an abstract class, then expect subclasses like Dog, Wolf, etc...
If Canine is an interface, then could get implementations like Blender

Discussion

Guideline: Use abstract classes to provide default behavior or define a family.

Agenda

Java's Interface

Code Reuse with Composition

Full Blown Multiple Inheritance

Polymorphism with Pure ABCs

Multiple Inheritance Usefulness

Composition with interfaces

Why are interfaces so useful?

Interfaces and C++

Discussion

How to use interfaces

A Noun interface

An Adjective interface

An Tag interface

Pulling interfaces out of Thin Air

Discussion

Service Decoupling

Restricting Semantics

Discussion

Convenience Implementations

Discussion

Abstract Classes

Discussion

Composition with `interface`s

Why are `interface`s so useful?

How to use `interface`s

A Noun `interface`

An Adjective `interface`

An Tag `interface`

Pulling `interface`s out of Thin Air
