Objects and Java Seminar: Jini and JavaSpaces

Objects and Java Seminar
Jini and JavaSpaces
Lecture Handout

Agenda

Introduce Jini
Discuss concepts and show code examples
Discuss runtime infrastructure: discovery, join, lookup
Discuss JavaSpaces

Why Jini?

Jini enables a "plug and play" network
- The RCA Dimensia System
Jini gives the network a type system
- OO Programming no longer limited to single address space
- Clients request service by their Java interface
Jini is a network-centric computing architecture
- A fundamental change in the architecture of "computers"
- Enabled by Java -- service can inject code into client
- Defines "rules of federation"; doesn't "know everything"

What is Jini?

A programming model/infrastructure that enables building/deploying of distributed systems
Takes care of common but difficult parts:
- boot-strap (discovery)
- directory (look-up)
Jini systems organized as federations of services
Service: hardware, software, comm channel, user
Example: disk drive can offer a storage service
Once part of a federation, service can be used by other services or clients

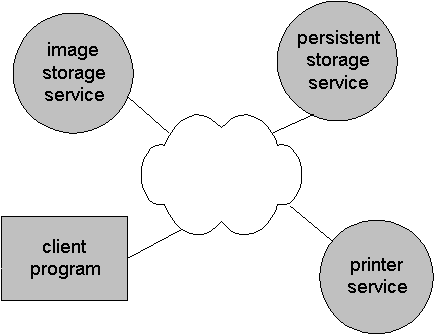

Jini Example

Jini is the Glue

Jini has two parts:
Programming Model: Helps you build a distributed system organized as a federation of clients and services
Runtime Infrastructure: Resides on the network and provides mechanisms for adding, subtracting, locating, and accessing services
How it works:
- Via runtime infrastructure, services make themselves available
- Via runtime infrastructure, clients locate and contact services

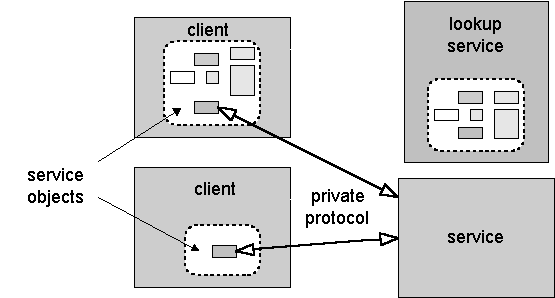

- To do work, clients and services can use the programming model

The Runtime Infrastructure

Resides in two places: lookup services and Jini-enabled devices
Lookup service: central organizing mechanism for Jini-based systems
- A device is plugged into the network
- It registers its service(s) with a lookup service
- The device and its services are now part of a federation
- A client wishes to locate a service to assist with some task
- Client consults a lookup service

Groups

Lookup services organize the services they contain into groups
Group: a set of registered services identified by a string
"East Conference Room" group: services offered by all devices in the East Conference Room
A service can be a member of multiple groups
Multiple lookup services can maintain the same group
Redundancy can help make a Jini system more fault tolerant

Discovery, Join, Lookup

Three basic processes defined in specs: discovery, join, and lookup
Discovery: Devices/Clients locate and obtain references to lookup services
Join: Device registers its services with lookup services

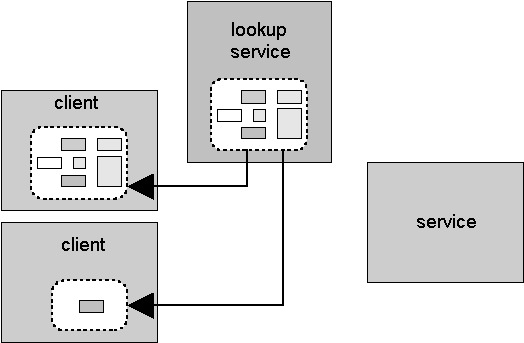

Lookup: Clients locate and contact services

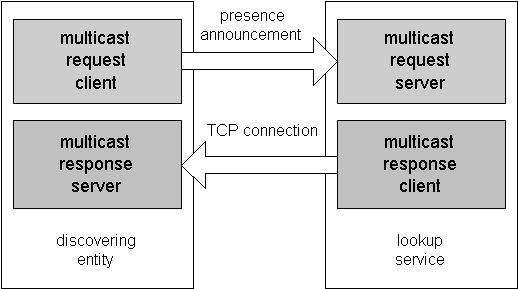

Discovery - Multicast Request Protocol

Drop a multicast UDP "presence announcement" onto a well-known port (recommended: 7 times, 5 seconds apart)
- Groups the device wants to join
- IP address and port number where device can be contacted
- Lookup services it has already heard back from
Lookup services listen for presence announcements, contacts sender directly
Uses the unicast discovery protocol to obtain a "lookup service registrar"

Discovery - Multicast Request Protocol

Discovery - Unicast Discovery Protocol

Used to communicate with a specific lookup service
- To contact non-local lookup services (beyond multicast radius)
- For long term relationships with lookup services
- After multicast protocols result in contact
TCP connection made either by lookup service or discovering entity
Two steps:
- Discovering entity sends a unicast request
- Lookup service responds with a lookup service registrar object (an RMI Marshalled Object)

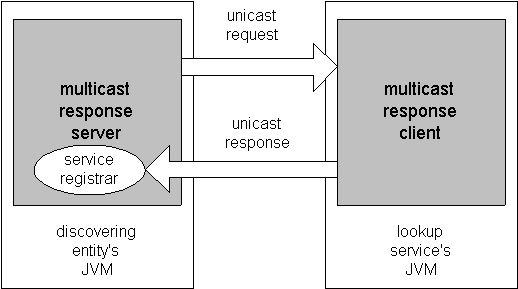

Discovery - The Unicast Discovery Protocol

Discovery - The Multicast Announcement Protocol

Good for new lookup services and after network failures
Lookup service sends out a "multicast presence announcement" (Recommended: every 120 seconds)
- The service ID of this lookup service
- IP address and port number where unicast discovery of this lookup service can be done
- List of groups it manages
Discovering entity listens for announcements, contacts lookup service
Performs unicast discovery to obtain a "lookup service registrar"

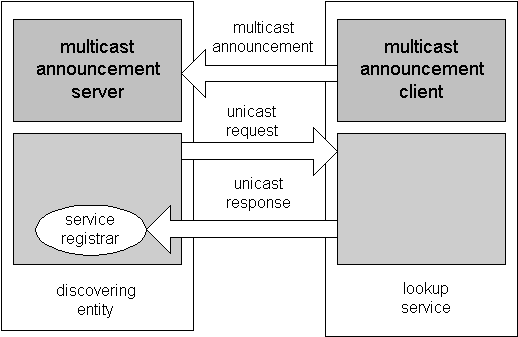

Discovery - The Multicast Announcement Protocol

Final result of discovery: service registrar object from lookup service is injected into discovering entity's JVM

A Discovery Example

You plug a Jini-enabled disk drive into network
Drive drops a multicast presence announcement
Lookup service receives the disk drive's announcement packet
Lookup service contacts the disk drive directly (TCP connection)
Drive sends a unicast discovery request packet to lookup service
Lookup service sends a service registrar object
Disk drive can register itself (via join) through the service registrar

Lookup Service Ping

Performs unicast discovery given a URL passed as the first argument
"Pings" the specified lookup service and prints out some information about it

 1 import net.jini.core.discovery.LookupLocator;
 2 import net.jini.core.lookup.ServiceRegistrar;
 3 import net.jini.core.lookup.ServiceID;
 4
 5 import java.io.*;
 6 import java.rmi.*;
 7 import java.rmi.server.*;
 8 import java.util.StringTokenizer;
 9
10 public class LSP
11 {
12     public static void main (String[] args) {
13
14         if (args.length == 0) {
15             System.out.println("LSP requires a lookup service URL as first arg.");
16             System.out.println("Example: \"LSP jini://localhost:2000\"");
17             System.exit(0);
18         }
19
20         String urlString = args[0];
21
22         try {
23             System.setSecurityManager (new RMISecurityManager());
24
25             // Instantiate a LookupLocator object set to perform
26             // unicast discovery on the lookup service indicated
27             // by the passed in host and port number. (If no port number
28             // is specified, the default port of 4160 will be used.)
29             LookupLocator lookupLocator = new LookupLocator(urlString);
30             String host = lookupLocator.getHost();
31             int port = lookupLocator.getPort();
32
33             System.out.println("Lookup Service: jini://" + host + ":" + port);
34
35             // Invoke getRegistrar() on the LookupLocator to cause it to
36             // perform unicast discovery on the lookup service indicated
37             // by the host and port number passed to the constructor.
38             // The result is a reference to the registar object sent from
39             // the lookup service.
40             ServiceRegistrar registrar = lookupLocator.getRegistrar();
41
42             // A lookup service is, after all, a service -- a service
43             // so proud of itself that it registers itself with itself. To
44             // get the ID it assigns to itself, call getServicerID() on
45             // the registrar object.
46             ServiceID id = registrar.getServiceID();
47
48             System.out.println ("Lookup Service ID: " + id.toString());
49         }
50         catch (Exception e) {
51               System.out.println("LSP Exception:" + e);
52         }
53     }
54 }

$ java -Djava.security.policy="policy.all" LSP jini://localhost

Lookup Service: jini://localhost:4160
Lookup Service ID: a1366531-5805-4f2e-8b40-e6b9b36f78fb

Lookup Service Find

LSF performs multicast discovery to locate all nearby lookup services and prints out a line of information about each

 1 import net.jini.discovery.LookupDiscovery;
 2 import net.jini.core.discovery.LookupLocator;
 3 import net.jini.discovery.DiscoveryListener;
 4 import net.jini.discovery.DiscoveryEvent;
 5 import net.jini.core.lookup.ServiceRegistrar;
 6 import net.jini.core.lookup.ServiceID;
 7
 8 import java.io.*;
 9 import java.rmi.*;
10 import java.rmi.server.*;
11 import java.util.StringTokenizer;
12
13 // Lookup Service Find - Does discovery to find the nearby lookup
14 // services and prints out a list
15 public class LSF implements DiscoveryListener
16 {
17     public static void main (String[] args) {
18
19         try {
20             System.setSecurityManager (new RMISecurityManager());
21
22             LookupDiscovery ld = new LookupDiscovery(LookupDiscovery.NO_GROUPS);
23             ld.addDiscoveryListener(new LSF());
24             ld.setGroups(LookupDiscovery.ALL_GROUPS);
25
26             Thread.currentThread().sleep(1000000000L);
27         }
28         catch (Exception e) {
29               System.out.println("LSF Exception:" + e);
30         }
31     }
32
33     public void discovered(DiscoveryEvent de) {
34
35         try {
36             // Invoke getRegistrar() on the LookupLocator to cause it to
37             // perform unicast discovery on the lookup service indicated
38             // by the host and port number passed to the constructor.
39             // The result is a reference to the registar object sent from
40             // the lookup service.
41             ServiceRegistrar[] registrars = de.getRegistrars();
42
43             for (int i = 0; i < registrars.length; ++i) {
44                 // A lookup service is, after all, a service -- a service
45                 // so proud of itself that it registers itself with itself. To
46                 // get the ID it assigns to itself, call getServicerID() on
47                 // the registrar object.
48                 ServiceID id = registrars[i].getServiceID();
49
50                 LookupLocator lookupLocator = registrars[i].getLocator();
51                 String host = lookupLocator.getHost();
52                 int port = lookupLocator.getPort();
53
54                 System.out.println("Lookup Service: jini://" + host + ":"
55                     + port + ", " + id.toString());
56             }
57         }
58         catch (Exception e) {
59               System.out.println("LSF Exception:" + e);
60         }
61     }
62
63     public void discarded(DiscoveryEvent de) {
64     }
65 }


$ java -Djava.security.policy="policy.all" LSF

Lookup Service: jini://bvenners:4160, a1366531-5805-4f2e-8b40-e6b9b36f78fb

Join

After discovery, device can register its services via join
Service connects to lookup service via the service registrar object
Service sends information about itself to the lookup service
Lookup service stores the information uploaded from the service
At that point, the service has joined that lookup service

The `ServiceItem`

ServiceRegistrar.register(ServiceItem item, long leaseDuration);
A ServiceItem has 3 parts:
- A ServiceID object, or null if registering for the first time
- A service object
- An array of attribute sets: Entry[]
An entry is an object that implements the Entry interface and contains public fields of reference (object) types

Example entry: UIDescriptor:

 1 public class UIDescriptor extends AbstractEntry {
 2
 3     public String role;
 4     public String toolkit;
 5     public Set attributes;
 6     public MarshalledObject factory;
 7
 8     public UIDescriptor() {
 9     }
10
11     public UIDescriptor(String role, String toolkit, Set attributes,
12         MarshalledObject factory) {
13
14         this.role = role;
15         this.toolkit = toolkit;
16         this.attributes = attributes;
17         this.factory = factory;
18     }
19
20     public final Object getUIFactory(final ClassLoader parentLoader)
21         throws IOException, ClassNotFoundException {
22
23         //...
24     }
25 }

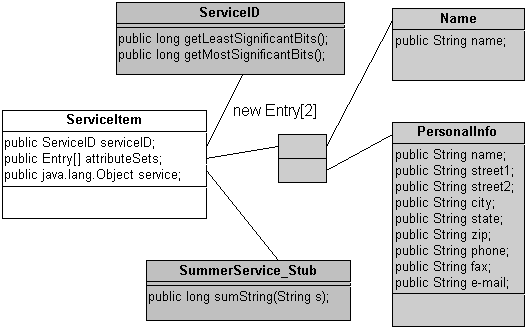

A `ServiceItem` Diagram

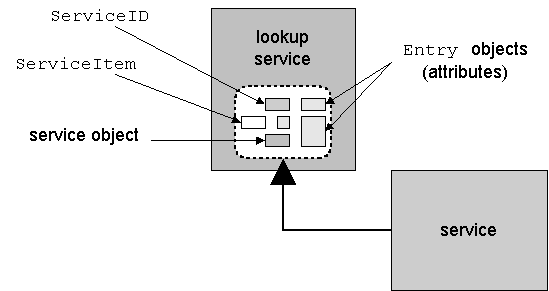

The Join Process

The `SummerService`

 1 import net.jini.core.discovery.LookupLocator;
 2 import net.jini.core.lookup.ServiceRegistrar;
 3 import net.jini.core.lookup.ServiceID;
 4 import net.jini.core.lookup.ServiceTemplate;
 5 import net.jini.core.lookup.ServiceMatches;
 6 import net.jini.core.lookup.ServiceItem;
 7 import com.sun.jini.lookup.JoinManager;
 8 import com.sun.jini.lookup.ServiceIDListener;
 9 import net.jini.core.entry.Entry;
10 import net.jini.lookup.entry.Name;
11 import com.sun.jini.lease.LeaseRenewalManager;
12
13 import java.io.*;
14 import java.rmi.*;
15 import java.rmi.server.*;
16 import java.util.StringTokenizer;
17
18 public class SummerService extends UnicastRemoteObject
19     implements Summer, ServiceIDListener, Serializable
20 {
21     public SummerService() throws RemoteException {
22         super ();
23     }
24
25     public long sumString(String s) throws InvalidLongException,
26         RemoteException {
27
28         System.out.println("sumString(\"" + s + "\")");
29         long sum = 0;
30         StringTokenizer st = new StringTokenizer(s);
31         String token;
32         while (st.hasMoreTokens()) {
33             token = st.nextToken();
34             try {
35                 sum += Long.parseLong(token);
36             }
37             catch (NumberFormatException e) {
38                 throw new InvalidLongException(
39                     "Invalid number: " + token);
40             }
41         }
42
43         return sum;
44     }
45
46     public void serviceIDNotify (ServiceID idIn) {
47     }
48
49     public static void main (String[] args) {
50
51         try {
52             System.setSecurityManager(new RMISecurityManager());
53
54             Entry[] attributes = new Entry[1];
55             attributes[0] = new Name("SummerService");
56
57             SummerService summerService = new SummerService();
58
59             JoinManager joinManager = new JoinManager(summerService,
60                 attributes, summerService, new LeaseRenewalManager());
61         }
62         catch (Exception e) {
63             System.out.println("SummerService Exception:" + e);
64         }
65     }
66 }


$ java -Djava.security.policy=/sun/jini/bv/policy.all
    -Djava.rmi.server.codebase=http://localhost:8080/ SummerService




1 import java.rmi.*;
2
3 public interface Summer extends Remote {
4
5     long sumString(String s)
6         throws InvalidLongException,
7         RemoteException;
8 }


 1 public class InvalidLongException
 2     extends Exception {
 3
 4     private String message;
 5     InvalidLongException(String s) {
 6         message = s;
 7     }
 8     public String getMessage() {
 9         return message;
10     }
11 }

The Lookup Process

Lookup Service Directory

 1 import net.jini.core.discovery.LookupLocator;
 2 import net.jini.core.lookup.ServiceRegistrar;
 3 import net.jini.core.lookup.ServiceID;
 4 import net.jini.core.lookup.ServiceTemplate;
 5 import net.jini.core.lookup.ServiceMatches;
 6 import net.jini.core.lookup.ServiceItem;
 7
 8 import java.io.*;
 9 import java.rmi.*;
10 import java.rmi.server.*;
11 import java.util.StringTokenizer;
12
13 public class LSD
14 {
15     public static void main (String[] args) {
16
17         if (args.length == 0) {
18             System.out.println("LSP requires a lookup service URL as first arg.");
19             System.out.println("Example: \"LSP jini://localhost:2000\"");
20             System.exit(0);
21         }
22
23         String urlString = args[0];
24
25         try {
26             System.setSecurityManager (new RMISecurityManager());
27
28             // Instantiate a LookupLocator object set to perform
29             // unicast discovery on the lookup service indicated
30             // by the passed in host and port number. (If no port number
31             // is specified, the default port of 4160 will be used.)
32             LookupLocator lookupLocator = new LookupLocator(urlString);
33             String host = lookupLocator.getHost();
34             int port = lookupLocator.getPort();
35
36             System.out.println();
37             System.out.println("Lookup Service: jini://" + host + ":" + port);
38
39             // Invoke getRegistrar() on the LookupLocator to cause it to
40             // perform unicast discovery on the lookup service indicated
41             // by the host and port number passed to the constructor.
42             // The result is a reference to the registar object sent from
43             // the lookup service.
44             ServiceRegistrar registrar = lookupLocator.getRegistrar();
45
46             // Create a ServiceTemplate object that will match all the
47             // services in the lookup service.
48             ServiceTemplate serviceTemplate = new ServiceTemplate(null, null,
49                 null);
50
51             // Do the lookup. This is bad LSD in a way, because it will
52             // only report at most 1000 services in the lookup service.
53             ServiceMatches matches = registrar.lookup(serviceTemplate, 1000);
54
55             System.out.println("Total Services: " + matches.totalMatches);
56             System.out.println();
57             for (int i = 0; i < matches.totalMatches; ++i) {
58
59                 ServiceItem item = matches.items[i];
60                 String typeName = item.service.getClass().getName();
61                 String idString = item.serviceID.toString();
62
63                 System.out.println(typeName + ": " + idString);
64             }
65             System.out.println();
66         }
67         catch (Exception e) {
68               System.out.println("LSD Exception: " + e);
69         }
70     }
71 }


$ java -Djava.security.policy="policy.all" LSD jini://localhost

Lookup Service: jini://localhost:4160
Total Services: 2

SummerService_Stub: f6731f98-9bf2-4434-814f-fee57deadaf4
com.sun.jini.reggie.RegistrarProxy: a1366531-5805-4f2e-8b40-e6b9b36f78fb

Using a Service

The `SummerClient`

 1 import net.jini.entry.*;
 2 import net.jini.core.lookup.*;
 3 import net.jini.core.entry.*;
 4 import net.jini.lookup.entry.*;
 5 import net.jini.core.discovery.*;
 6 import java.rmi.*;
 7 import java.io.*;
 8
 9 class SummerClient
10 {
11     public static void main (String[] args) {
12
13
14         try {
15             System.setSecurityManager (new RMISecurityManager ());
16
17             // Perform unicast lookup on localhost
18             LookupLocator lookup = new LookupLocator("jini://localhost");
19
20             // Get the service registrar object for the lookup service
21             ServiceRegistrar registrar = lookup.getRegistrar();
22
23             // Search the lookup server to find the service that has the
24             // name attribute of "SummerService".
25             Entry[] attributes = new Entry[1];
26             attributes[0] = new Name("SummerService");
27             ServiceTemplate template = new ServiceTemplate(null, null,
28                 attributes);
29
30             // lookup() returns the service object for a service that matches
31             // the search criteria passed in as template
32             // Here, although I searched by Name attribute, I'm assuming that
33             // the object that comes back implements the Summer interface
34             Summer summer = (Summer) registrar.lookup(template);
35
36             LineNumberReader stdinReader = new LineNumberReader(
37                 new BufferedReader(new InputStreamReader(System.in)));
38
39             for (;;) {
40
41                 String userLine = stdinReader.readLine();
42
43                 if (userLine == null || userLine.length() == 0) {
44                     break;
45                 }
46
47                 String outString;
48                 try {
49                     long sum = summer.sumString(userLine);
50                     outString = Long.toString(sum);
51                 }
52                 catch(InvalidLongException e) {
53                     outString = e.getMessage();
54                 }
55                 System.out.println(outString);
56             }
57         }
58         catch (Exception e)
59         {
60           System.out.println("client: MyClient.main() exception: " + e);
61           e.printStackTrace();
62         }
63     }
64 }


$ java -Djava.security.policy=/sun/jini/bv/policy.all
    -Djava.rmi.server.codebase=http://localhost:8080/ SummerClient
1 1
2
2 2
4
3 3 3
9

The `SummerClient2`

import net.jini.entry.*;
import net.jini.lookup.*;
import net.jini.lookup.entry.*;
import net.jini.discovery.*;
import java.rmi.*;
import java.io.*;

class SummerClient2
{
    public static void main (String[] args) {

        try {
            System.setSecurityManager(new RMISecurityManager ());

            // Perform unicast lookup on localhost
            LookupLocator lookup = new LookupLocator("jini://localhost");

            // Get the service registrar object for the lookup service
            ServiceRegistrar registrar = lookup.getRegistrar();

            // Search the lookup server to find a service that implements
            // the Summer interface.
            Class[] types = new Class[1];
            types[0] = Summer.class;
            ServiceTemplate template = new ServiceTemplate(null, types, null);

            // lookup() returns the service object for a service that matches
            // the search criteria passed in as template
            // Here, because I searched by type, I'm certain that
            // the object that comes back implements the Summer interface.
            Summer summer = (Summer) registrar.lookup(template);

            LineNumberReader stdinReader = new LineNumberReader(
                new BufferedReader(new InputStreamReader(System.in)));

            for (;;) {

                String userLine = stdinReader.readLine();

                if (userLine == null || userLine.length() == 0) {
                    break;
                }

                String outString;
                try {
                    long sum = summer.sumString(userLine);
                    outString = Long.toString(sum);
                }
                catch(InvalidLongException e) {
                    outString = e.getMessage();
                }
                System.out.println(outString);
            }
        }
        catch (Exception e)
        {
          System.out.println("client: MyClient.main() exception: " + e);
          e.printStackTrace();
        }
    }
}


$ java -Djava.security.policy=/sun/jini/bv/policy.all
    -Djava.rmi.server.codebase=http://localhost:8080/ SummerClient2
1 1
2
3 -1
2
9999999 1
10000000

The Protocol is Private

Service object can:

implement the service locally
implement the service in part locally (smart proxy)
be an RMI stub
communicate back to service via sockets and streams
use DCOM
use CORBA
Send bits and bytes directly to a piece of hardware
Whatever: client doesn't care because it just invokes methods declared in the Java interface

Jini Programming Model

Distributed leasing
Distributed events
Distributed transactions

JavaSpaces

Distributed persistence and algorithms
A JavaSpaces server holds entries: typed groups of objects
Write an entry - creates a copy
Look up with template entries:
- fields with values (exact matching)
- null fields are wildcards
Two kinds of lookup:
- Read: returns an entry or indicates no match
- Take: reads + removes

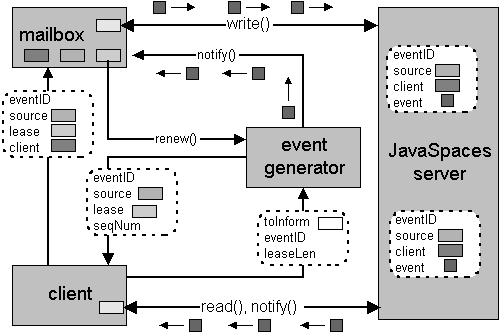

Can request a space to notify you (uses Jini distributed events)
All operations transactionally secure: a write writes and a take takes
Entries written to a space are leased (uses Jini leasing)

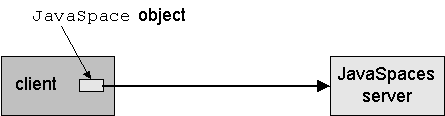

The `JavaSpace` Interface

Interact with a space via JavaSpace interface
Can get the JavaSpace object from a Jini lookup service, RMI registry, or ...

write()

    public Lease write(Entry e, Transaction txn, long lease)
        throws TransactionException, SecurityException,
        java.rmi.RemoteException;

Can write duplicate entries into a space

read()

    public Entry read(Entry tmpl, Transaction txn, long timeout)
        throws UnusableEntryException, TransactionException,
        SecurityException, InterruptedException, java.rmi.RemoteException;

Timeout 0: wait forever; JavaSpace.NO_WAIT: don't wait at all
Thread blocks while waiting
If multiple matches, get an arbitrary matching entry

readIfExists()

    public Entry readIfExists(Entry tmpl, Transaction txn, long timeout)
        throws UnusableEntryException, TransactionException,
        SecurityException, InterruptedException, java.rmi.RemoteException;

readIfExists() also reads, but only blocks if waiting for a transactional state to settle

take() and takeIfExists()

    public Entry take(Entry tmpl, Transaction txn, long timeout)
        throws UnusableEntryException, TransactionException,
        SecurityException, InterruptedException, java.rmi.RemoteException;

    public Entry takeIfExists(Entry tmpl, Transaction txn, long timeout)
        throws UnusableEntryException, TransactionException,
        SecurityException, InterruptedException, java.rmi.RemoteException;

Like corresponding reads, but also removes returned entry

notify()

    public EventRegistration notify(Entry tmpl, Transaction txn,
        RemoteEventListener listener, long lease,
        java.rmi.MarshalledObject handback)
        throws TransactionException, SecurityException,
        java.rmi.RemoteException;

Registers listener as interested in match event

Entries and Matching

Entries are typed sets of objects:

public class CachedEvent extends AbstractEntry {

    public Long eventID;
    public Object eventSource;
    public Object eventListener;
    public RemoteEvent event;

    public CachedEvent() {
    }

    public CachedEvent(long eventID, Object eventSource,
        Object eventListener, RemoteEvent event) {

        this.eventID = new Long(eventID);
        this.eventSource = eventSource;
        this.eventListener = eventListener;
        this.event = event;
    }
}

Each (public, non-static, non-final) field is serialized separately
Two fields one object --> two fields two objects
To match, compare serialized images (MarshalledObject.equals())
Semantic equals() not used in matching
Object images must match exactly; null is wildcard

JavaSpaces Uses

Persistence: Can use a space to store and retrieve objects on a remote system
Distributed Algorithms: JavaSpaces facilitates distributed algorithms based on "flows of objects"
- Java Rings and Fractal Points
- A RemoteEvent Mailbox

Agenda

Why Jini?

What is Jini?

Jini Example

Jini is the Glue

The Runtime Infrastructure

Groups

Discovery, Join, Lookup

Discovery - Multicast Request Protocol

Discovery - Multicast Request Protocol

Discovery - Unicast Discovery Protocol

Discovery - The Unicast Discovery Protocol

Discovery - The Multicast Announcement Protocol

Discovery - The Multicast Announcement Protocol

A Discovery Example

Lookup Service Ping

Lookup Service Find

Join

The ServiceItem

A ServiceItem Diagram

The Join Process

The SummerService

The Lookup Process

Lookup Service Directory

Using a Service

The SummerClient

The SummerClient2

The Protocol is Private

Jini Programming Model

JavaSpaces

The JavaSpace Interface

Entries and Matching

JavaSpaces Uses

The `ServiceItem`

A `ServiceItem` Diagram

The `SummerService`

The `SummerClient`

The `SummerClient2`

The `JavaSpace` Interface
