Objects and Patterns Workshop: Designing with Exceptions and Threads

Objects and Patterns Workshop
Designing with Exceptions and Threads

Agenda

Use exceptions to indicate a broken semantic contract.
Throw exceptions on abnormal conditions.
Use a checked exception for conditions client code can reasonably be expected to handle.
Throw a different exception type for each abnormal condition.
Idiom: The Thread-Safe Object

Broken Semantic Contract

Guideline: Use exceptions to indicate a broken semantic contract.
Pre-conditions, Post-conditions, Invariants
charAt(int index) pre-condition: 0 <= index < length()
If you pass -1 to charAt(), you'll get an (unchecked) StringIndexOutOfBoundsException
If you meet the pre-condition, but String is somehow unable to meet the post-conditions and invariants, it will also throw an exception.

Discussion

Guideline: Use exceptions to indicate a broken semantic contract.

Abnormal Conditions

Guideline: Throw exceptions on abnormal conditions.
But what's an abnormal condition?
Avoid using exceptions to indicate conditions that can reasonably be expected as part of the typical functioning of the method.

Example: `FileInputStream`

FileInputStream returns -1 on end of file.
Even if you call read() again after hitting EOF, you'll still get -1.
Says: hitting EOF is a normal condition to encounter when using the read() method

 1 // In file ex9/Example9a.java
 2 import java.io.*;
 3 class Example9a {
 4
 5     public static void main(String[] args)
 6         throws IOException {
 7
 8         if (args.length == 0) {
 9             System.out.println("Must give filename as first arg.");
10             return;
11         }
12
13         FileInputStream in;
14         try {
15             in = new FileInputStream(args[0]);
16         }
17         catch (FileNotFoundException e) {
18             System.out.println("Can't find file: " + args[0]);
19             return;
20         }
21
22         int ch;
23         while ((ch = in.read()) != -1) {
24             System.out.print((char) ch);
25         }
26         System.out.println();
27
28         in.close();
29     }
30

Example: `StringTokenizer` and `Stack`

StringTokenizer makes you ask hasMoreTokens() before calling nextToken()
If you call nextToken() after hasMoreTokens() returns (or would return) false, you get an (unchecked) NoSuchElementException
Says: hitting "end of tokens" is an abnormal condition to encounter when using the nextToken() method, because you are supposed to check with hasTokens() first

 1 // In file ex9/Example9c.java
 2 // This program prints the white-space separated tokens of an
 3 // ASCII file in reverse order of their appearance in the file.
 4 import java.io.*;
 5 import java.util.*;
 6 class Example9c {
 7
 8     public static void main(String[] args)
 9         throws IOException {
10
11         if (args.length == 0) {
12             System.out.println("Must give filename as first arg.");
13             return;
14         }
15
16         FileInputStream in = null;
17         try {
18             in = new FileInputStream(args[0]);
19         }
20         catch (FileNotFoundException e) {
21             System.out.println("Can't find file: " + args[0]);
22             return;
23         }
24
25         // Read file into a StringBuffer
26         StringBuffer buf = new StringBuffer();
27         try {
28             int ch;
29             while ((ch = in.read()) != -1) {
30                 buf.append((char) ch);
31             }
32         }
33         finally {
34             in.close();
35         }
36
37         // Separate StringBuffer into tokens and
38         // push each token into a Stack
39         StringTokenizer tok = new StringTokenizer(buf.toString());
40         Stack stack = new Stack();
41         while (tok.hasMoreTokens()) {
42             stack.push(tok.nextToken());
43         }
44
45         // Print out tokens in reverse order.
46         while (!stack.empty()) {
47             System.out.println((String) stack.pop());
48         }
49     }
50

Stack makes you ask empty() before calling pop()
If you call pop() after empty() returns (or would return) true, you get an (unchecked) EmptyStackException
Says: hitting "empty stack" is an abnormal condition to encounter when using the pop() method, because you are supposed to check with empty() first

Why Just Abnormal Conditions?

Exceptions are free unless thrown...
But if thrown, they are very expensive.
Separating error handling code that almost never happens from code that represents the normal path of execution can make code more readable
But if the normal path of execution has to go through lots of catch clauses, the code is harder to read
Abnormal condition is what an exception means, because broken contracts should be relatively rare

Discussion

Guideline: Throw exceptions on abnormal conditions.

Exceptions and `throws`

Guideline: Use a checked exception for conditions client code can reasonably be expected to handle.
Java requires that a method declare in a throws clause the exceptions that it may throw
A method's throws clause indicates to client programmers what exceptions they may have to deal with when they invoke the method

Only exceptions that will cause a method to complete abruptly should appear in its throws clause:

// In file VirtualPerson.java
class VirtualPerson {
    public void drinkCoffee(CoffeeCup cup)
        throws TooColdException,
        TemperatureException,
        UnusualTasteException {
        try {
            int i = (int) (Math.random() * 4.0);
            switch (i) {
            case 0:
                throw new TooHotException();
            case 1:
                throw new TooColdException();
            case 2:
                throw new UnusualTasteException();
            default:
                throw new TemperatureException();
            }
        }
        catch (TooHotException e) {
            System.out.println(
                "This coffee is too hot.");
            // Customer will wait until it cools
            // to an acceptable temperature.
        }
    }
    //...
}

The calling method must either catch the exception or declare it in its own throws clause:

// In file VirtualCafe.java
class VirtualCafe {
    public static void serveCustomer(
        VirtualPerson cust, CoffeeCup cup)
        throws TemperatureException,
        UnusualTasteException {
        try {
            cust.drinkCoffee(cup);
        }
        catch (TooColdException e) {
            System.out.println(
                "This coffee is too cold.");
            // Add more hot coffee...
        }
    }
}

Checked versus Unchecked

Only checked exceptions need appear in throws clauses
Whether an exception is "checked" or "unchecked" is determined by its position in the hierarchy of throwable classes:

Exceptions In Your Face

Placing an exception in a throws clause forces client programmers who invoke your method to deal with the exception, either by:
- Catching it, or
- Declaring it in their own throws clause
Errors: For the JVM and Java API
To make a checked exception, subclass Exception but not RuntimeException
To make an unchecked exception, subclass RuntimeException

Why Checked Exceptions?

From the JLS: "This compile-time checking for the presence of exception handlers is designed to reduce the number of exceptions which are not properly handled."
If you are throwing an exception for an abnormal condition that you feel client programmers should consciously decide how to handle, throw a checked exception.
Unchecked exceptions indicate software bugs.
Precisely because unchecked exceptions usually represent software bugs, they often can't be handled somewhere with more context.

Discussion

Guideline: Use a checked exception for conditions client code can reasonably be expected to handle.

Exception Classes

Guideline: Throw a different exception type for each abnormal condition.

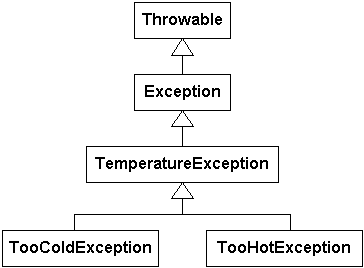

When you need to throw an exception, you can choose an already existing exception or make one of your own

// In file TemperatureException.java
class TemperatureException
    extends Exception {
}

// In file TooColdException.java
class TooColdException
    extends TemperatureException {
}

// In file TooHotException.java
class TooHotException
    extends TemperatureException {
}

Exception class should indicate the type of problem that caused the exception
Often, exception classes may have no fields or methods
Declare exceptions in the package they are thrown

Why Exception Classes?

Catch clauses catch exceptions based on type
You want each different kind of abnormal condition to be catchable in its own catch clause, to separate the handlers
Use inheritance relationships to enable a single catch clause to catch all flavors (subclasses) of a certain kind of abnormal condition
A catch clause for TemperatureException, for example, can catch TooHotException and TooColdException
catch (TooHotException e) { ... has meaning

Discussion

Guideline: Throw a different exception type for each abnormal condition.

The Thread-Safe Object

A state machine RGBColor object (not thread-safe)

 1 // In file objectidioms/ex6/RGBColor.java
 2 // Instances of this class are NOT thread-safe.
 3
 4 public class RGBColor {
 5
 6     private int r;
 7     private int g;
 8     private int b;
 9
10     public RGBColor(int r, int g, int b) {
11
12         checkRGBVals(r, g, b);
13
14         this.r = r;
15         this.g = g;
16         this.b = b;
17     }
18
19     public void setColor(int r, int g, int b) {
20
21         checkRGBVals(r, g, b);
22
23         this.r = r;
24         this.g = g;
25         this.b = b;
26     }
27
28     /**
29     * returns color in an array of three ints: R, G, and B
30     */
31     public int[] getColor() {
32
33         int[] retVal = new int[3];
34         retVal[0] = r;
35         retVal[1] = g;
36         retVal[2] = b;
37
38         return retVal;
39     }
40
41     public void invert() {
42
43         r = 255 - r;
44         g = 255 - g;
45         b = 255 - b;
46     }
47
48     private static void checkRGBVals(int r, int g, int b) {
49
50         if (r < 0 || r > 255 || g < 0 || g > 255 ||
51             b < 0 || b > 255) {
52
53             throw new IllegalArgumentException();
54         }
55     }
56 }

Write/Write Conflicts

Thread	Statement	r	g	b	Color
none	object represents green	0	255	0	GREEN
blue	blue thread invokes setColor(0, 0, 255)	0	255	0	GREEN
blue	`checkRGBVals(0, 0, 255);`	0	255	0	GREEN
blue	`this.r = 0;`	0	255	0	GREEN
blue	`this.g = 0;`	0	255	0	GREEN
blue	blue gets preempted	0	0	0	BLACK
red	red thread invokes setColor(255, 0, 0)	0	0	0	BLACK
red	`checkRGBVals(255, 0, 0);`	0	0	0	BLACK
red	`this.r = 255;`	0	0	0	BLACK
red	`this.g = 0;`	255	0	0	RED
red	`this.b = 0;`	255	0	0	RED
red	red thread returns	255	0	0	RED
blue	later, blue thread continues	255	0	0	RED
blue	`this.b = 255`	255	0	0	RED
blue	blue thread returns	255	0	255	MAGENTA
none	object represents magenta	255	0	255	MAGENTA

Read/Write Conflicts

Thread	Statement	r	g	b	Color
none	object represents green	0	255	0	GREEN
blue	blue thread invokes setColor(0, 0, 255)	0	255	0	GREEN
blue	`checkRGBVals(0, 0, 255);`	0	255	0	GREEN
blue	`this.r = 0;`	0	255	0	GREEN
blue	`this.g = 0;`	0	255	0	GREEN
blue	blue gets preempted	0	0	0	BLACK
red	red thread invokes getColor()	0	0	0	BLACK
red	`int[] retVal = new int[3];`	0	0	0	BLACK
red	`retVal[0] = 0;`	0	0	0	BLACK
red	`retVal[1] = 0;`	0	0	0	BLACK
red	`retVal[2] = 0;`	0	0	0	BLACK
red	`return retVal;`	0	0	0	BLACK
red	red thread returns black	0	0	0	BLACK
blue	later, blue thread continues	0	0	0	BLACK
blue	`this.b = 255`	0	0	0	BLACK
blue	blue thread returns	0	0	255	BLUE
none	object represents blue	0	0	255	BLUE

Thread-Safe `RGBColor` Object

 1 // In file objectidioms/ex7/RGBColor.java
 2 // Instances of this class are thread-safe.
 3
 4 public class RGBColor {
 5
 6     private int r;
 7     private int g;
 8     private int b;
 9
10     public RGBColor(int r, int g, int b) {
11
12         checkRGBVals(r, g, b);
13
14         this.r = r;
15         this.g = g;
16         this.b = b;
17     }
18
19     public void setColor(int r, int g, int b) {
20
21         checkRGBVals(r, g, b);
22
23         synchronized (this) {
24
25             this.r = r;
26             this.g = g;
27             this.b = b;
28         }
29     }
30
31     /**
32     * returns color in an array of three ints: R, G, and B
33     */
34     public int[] getColor() {
35
36         int[] retVal = new int[3];
37
38         synchronized (this) {
39
40             retVal[0] = r;
41             retVal[1] = g;
42             retVal[2] = b;
43         }
44
45         return retVal;
46     }
47
48     public synchronized void invert() {
49
50         r = 255 - r;
51         g = 255 - g;
52         b = 255 - b;
53     }
54
55     private static void checkRGBVals(int r, int g, int b) {
56
57         if (r < 0 || r > 255 || g < 0 || g > 255 ||
58             b < 0 || b > 255) {
59
60             throw new IllegalArgumentException();
61         }
62     }
63 }

Ready for Threads

Thread	Statement	r	g	b	Color
none	object represents green	0	255	0	GREEN
blue	blue thread invokes setColor(0, 0, 255)	0	255	0	GREEN
blue	`checkRGBVals(0, 0, 255);`	0	255	0	GREEN
blue	blue thread acquires lock	0	255	0	GREEN
blue	`this.r = 0;`	0	255	0	GREEN
blue	`this.g = 0;`	0	255	0	GREEN
blue	blue gets preempted	0	0	0	BLACK
red	red thread invokes setColor(255, 0, 0)	0	0	0	BLACK
red	`checkRGBVals(255, 0, 0);`	0	0	0	BLACK
red	red thread blocks because object locked	0	0	0	BLACK
blue	later, blue thread continues	0	0	0	BLACK
blue	`this.b = 255`	0	0	0	BLACK
blue	blue thread returns and releases lock	0	0	255	BLUE
red	later, red thread acquires lock and continues	0	0	255	BLUE
red	`this.r = 255;`	0	0	255	BLUE
red	`this.g = 0;`	255	0	255	MAGENTA
red	`this.b = 0;`	255	0	255	MAGENTA
red	red thread returns and releases lock	255	0	0	RED
none	object represents red	255	0	0	RED

The Thread-Safe Object

Make instance variables private
Figure out what the monitor regions should be and mark them synchronized
Make objects thread-safe only if they'll actually be used in a multi-threaded environment
Why? Performance hit from acquiring the lock and the possibility of deadlock

Discussion

The Thread-Safe Object

Agenda

Broken Semantic Contract

Discussion

Abnormal Conditions

Example: FileInputStream

Example: StringTokenizer and Stack

Why Just Abnormal Conditions?

Discussion

Exceptions and throws

Checked versus Unchecked

Exceptions In Your Face

Why Checked Exceptions?

Discussion

Exception Classes

Why Exception Classes?

Discussion

The Thread-Safe Object

Write/Write Conflicts

Read/Write Conflicts

Thread-Safe RGBColor Object

Ready for Threads

The Thread-Safe Object

Discussion

Example: `FileInputStream`

Example: `StringTokenizer` and `Stack`

Exceptions and `throws`

Thread-Safe `RGBColor` Object
